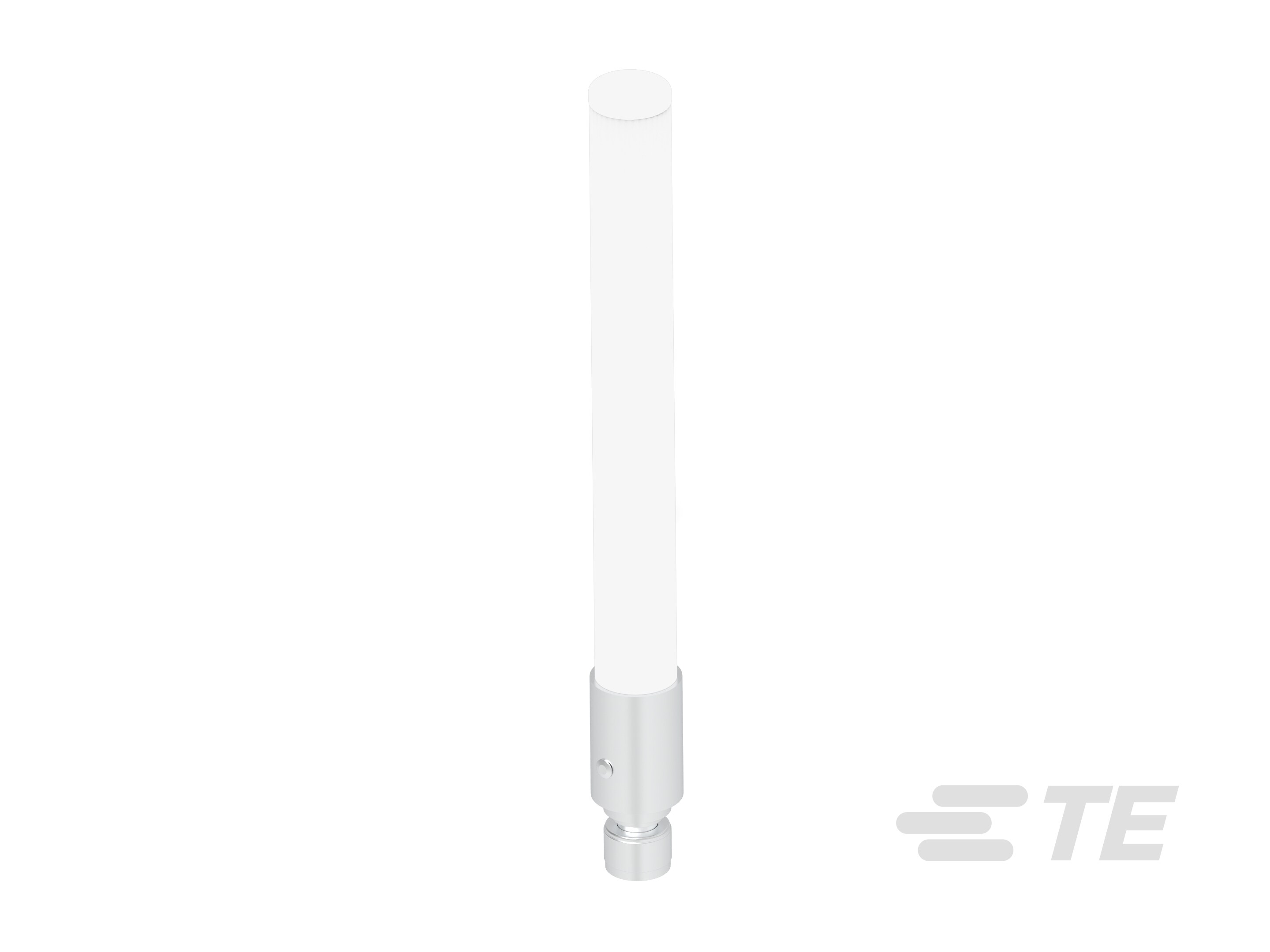

L000659-02
ActiveTE Connectivity AMP Connectors
OMNI,TBAND,NM,2.4/5-7.125GHZ,GM
L000659-02
ActiveTE Connectivity AMP Connectors
OMNI,TBAND,NM,2.4/5-7.125GHZ,GM
Description
General part information
L000659-02
RF ANTENNA 802.11ac, 802.11ax, 802.11be, 802.11b/g, 802.11n, Bluetooth, Wi-Fi, Zigbee™ Whip, Straight N Type Male Bracket, Mast, Pole Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | L000659-02 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | 802.11ac, 802.11be, 802.11b/g, Wi-Fi, Zigbee™, 802.11ax, 802.11N, Bluetooth |
| Frequency (Center/Band) | 5.45GHz, 2.45GHz, 6.5625GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.5 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 7.125 GHz |
| Frequency Range (Band 2) Minimum | 4.9 GHz |
| Gain | 6 dBi, 3 dBi |
| Height (Max) | 10.669 in |
| Mounting Type | Bracket, Pole Mount, Mast |
| Number of Bands | 3 |
| RF Family/Standard | WiFi |
| Termination Type | N Type Male |
| VSWR | 2 |
