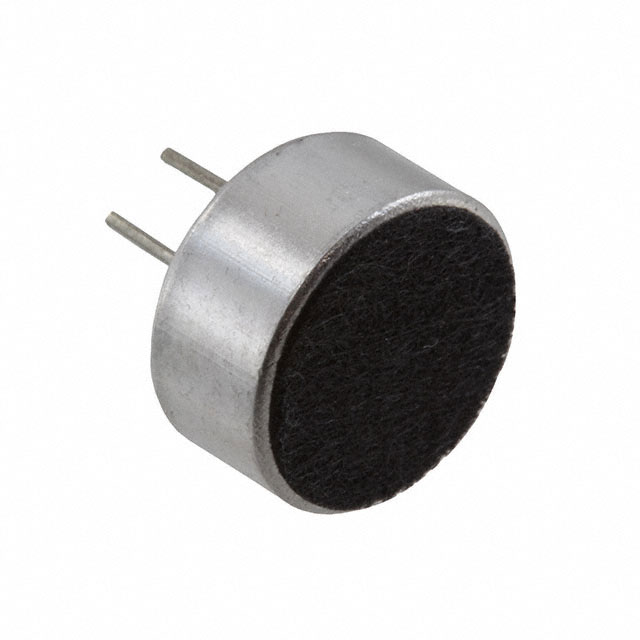

AOM-4544P-R
ActivePUI Audio, Inc.
MICROPHONE, ECM, OMNIDIRECTIONAL, 2.2 KOHM, -44 DB, 60DB SNR, 2 PINS, 3 TO 10 VDC
AOM-4544P-R
ActivePUI Audio, Inc.
MICROPHONE, ECM, OMNIDIRECTIONAL, 2.2 KOHM, -44 DB, 60DB SNR, 2 PINS, 3 TO 10 VDC
Description
General part information
AOM-4544P-R
Analog Microphone Electret Condenser 3 V ~ 10 V Omnidirectional (-44dB ±2dB) PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | AOM-4544P-R |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Height (Max) | 0.185 in |
| Impedance | 2.2 kOhms |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 60 dB |
| Sensitivity (Nominal) | -44 dB |
| Sensitivity Tolerance | 2 dB |
| Shape | Circular |
| Size / Dimension Diameter | 0.382 in |
| Termination | PC Pins |
| Type | Electret Condenser |
| Voltage - Rated | 3 VDC |
| Voltage Range (Max) | 10 V |
| Voltage Range (Min) | 3 V |
