2385007-4
ActiveTE Connectivity AMP Connectors

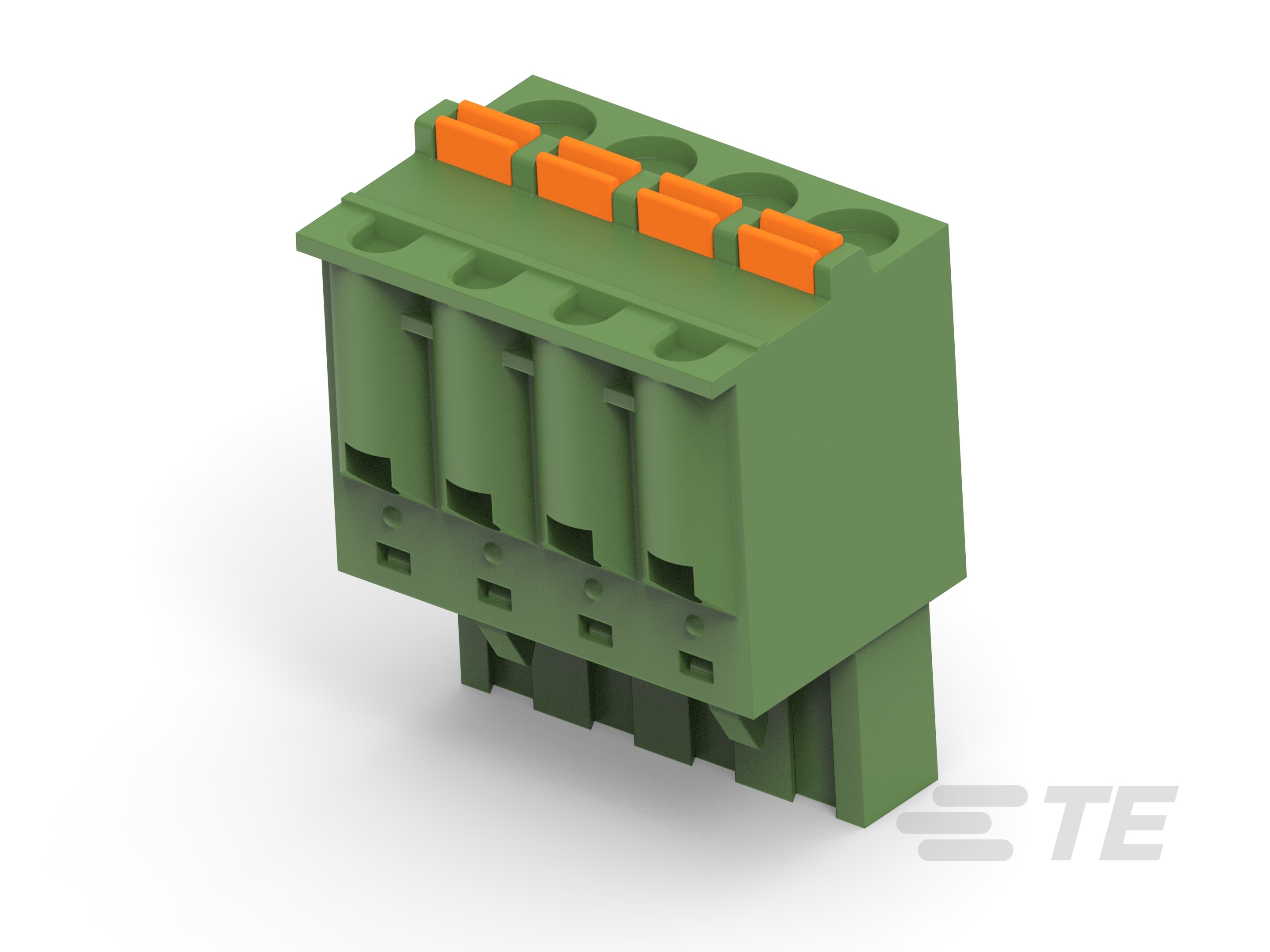

PLUGGABLE TERMINAL BLOCKS 4 POS SPRING TB PLUG, PITCH 5.08
2385007-4
ActiveTE Connectivity AMP Connectors
PLUGGABLE TERMINAL BLOCKS 4 POS SPRING TB PLUG, PITCH 5.08
Description
General part information
2385007-4
4 Position PCB Terminal Block, Plug, Wire-to-Board, 5.08 mm [.2 in] Centerline, 1 Row, 180° Wire Entry Angle, 12 – 26 AWG, .13 – 3.31 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 2385007-4 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 16 A |
| Features | Push Button Actuated |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 5.08 mm |
| Plug Wire Entry Angle | 180 ° |
| Positions Per Level | 4 |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Type | Female Sockets, Plug |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
