Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EV-VNQ5E160K | EV-VNQ5E160K Series |
|---|---|---|
| - | - | |
| Function | High Side Driver (Internal FET) | High Side Driver (Internal FET) |
| Primary Attributes | 4-Channel (Quad) | 4-Channel (Quad) |
| Supplied Contents | Board(s) | Board(s) |
| Type | Power Management | Power Management |
| Utilized IC / Part | VNQ5E160K | VNQ5E160K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.17 | |
EV-VNQ5E160K Series
VNQ5E160K Evaluation Board
| Part | Type | Supplied Contents | Function | Primary Attributes | Utilized IC / Part |
|---|---|---|---|---|---|
STMicroelectronics EV-VNQ5E160K | |||||
STMicroelectronics EV-VNQ5E160K | Power Management | Board(s) | High Side Driver (Internal FET) | 4-Channel (Quad) | VNQ5E160K |
Description
General part information
EV-VNQ5E160K Series

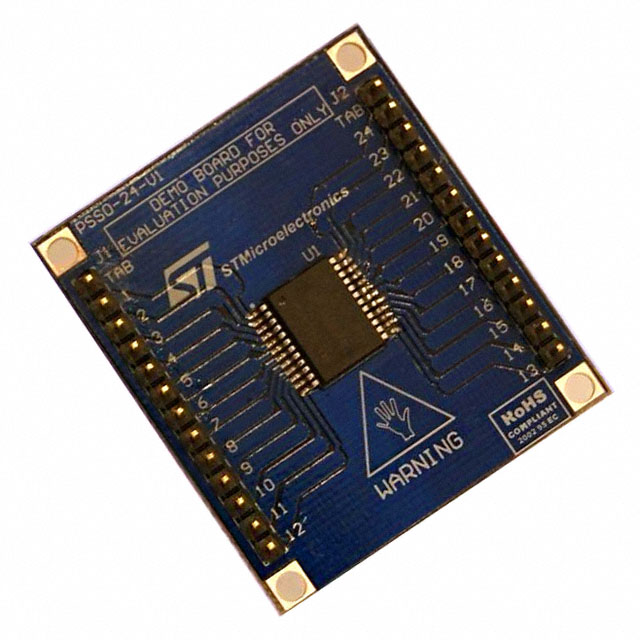

EV-VNQ5E160K provides you an easy way to connect ST’s surface mounted VIPower®drivers into your existing prototype circuitry. This evaluation board comes pre-assembled with VNQ5E160K-E high-side driver.
The VNQ5E160K-E is a quad channel high-side driver manufactured using ST proprietary VIPower M0-5 technology and housed in PowerSSO-24 package. The VNQ5E160K-E is designed to drive automotive grounded loads, providing protection, diagnostics and easy 3 V and 5 V CMOS-compatible interface with any microcontroller.
The device integrates advanced protective functions such as load current limitation, inrush and overload active management by power limitation, overtemperature shut-off with auto-restart and overvoltage active clamp. A dedicated active low digital status pin is associated with every output channel that provides enhanced diagnostic functions including fast detection of overload and short-circuit to ground, overtemperature indication, short-circuit to VCCdiagnosis and ON-state and OFF-state open-load detection.
