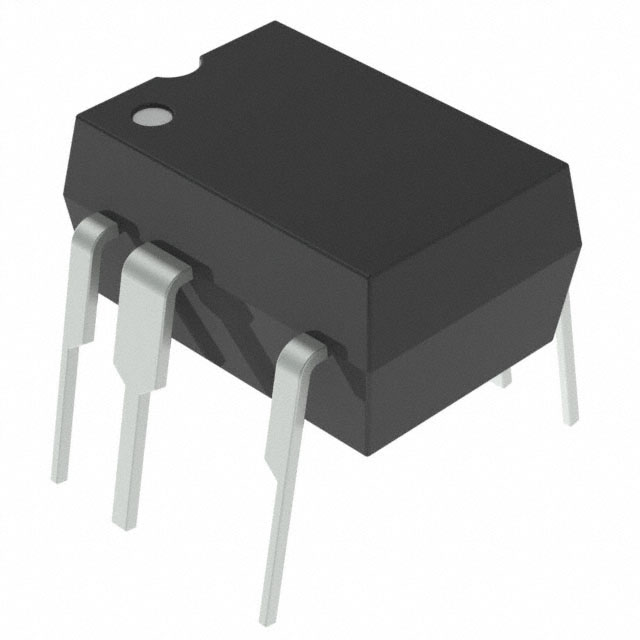

PR36MF21NSZF
UnknownSHARP/Socle Technology
SSR RELAY SPST-NO 600MA 0-240V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR36MF21NSZF
UnknownSHARP/Socle Technology
SSR RELAY SPST-NO 600MA 0-240V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR36MF21NSZF |
|---|---|
| Approval Agency | UL, VDE, CSA |
| Load Current | 600 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC, Zero Cross |
| Package / Case | 7.62 mm |
| Package / Case | 0.3 in, 7 Leads |
| Package / Case | 8-DIP |
| Supplier Device Package | 8-DIP |
| Termination Style | PC Pin |
| Voltage - Input | 1.2 VDC |
| Voltage - Load [Max] | 240 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PR36MF21NSZF
Solid State SPST-NO (1 Form A) 8-DIP (0.300", 7.62mm), 7 Leads
