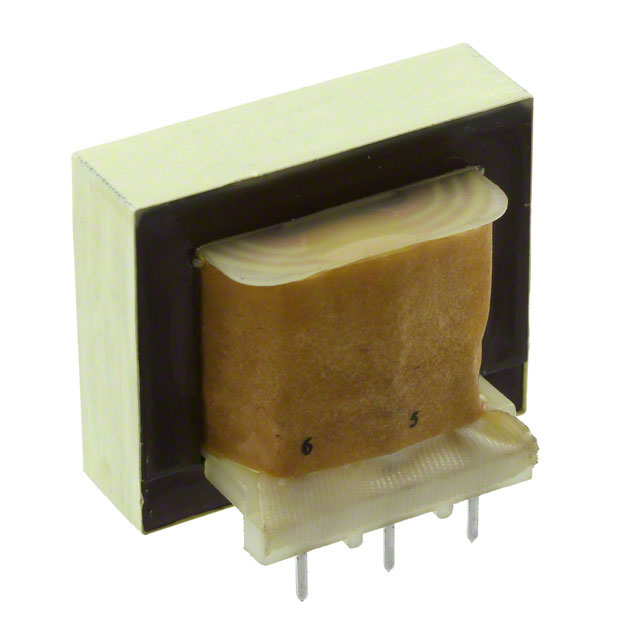

F-150P
ActiveTriad Magnetics
POWER TRANSFORMER 17.0VCT@0.085A 115V PCB MOUNT/F-150P ROHS COMPLIANT: YES
F-150P
ActiveTriad Magnetics
POWER TRANSFORMER 17.0VCT@0.085A 115V PCB MOUNT/F-150P ROHS COMPLIANT: YES
Description
General part information
F-150P
POWER TRANSFORMER 17.0VCT@0.085A 115V PCB MOUNT/F-150P ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | F-150P |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 170 mA |
| Current - Output (Max) Series | 85 mA |
| Height - Seated (Max) | 30.15 mm |
| Mounting Type | Through Hole |
| Power - Max | 1.5 W |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 35.31 mm |
| Size / Dimension Width | 39.67 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) (Parallel) | 8.5 V |
| Voltage - Secondary (Full Load) (Series) | 17 V |
| Weight | 0.219 lb |
