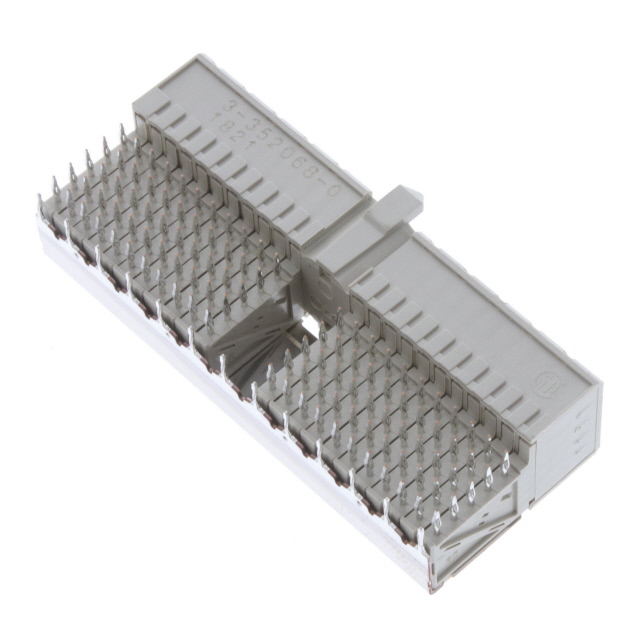

Specification	3-352068-0

Connector Style	A 22
Connector Type	Receptacle, Female Sockets
Connector Usage	CompactPCI J1, CompactPCI J4
Contact Finish	Gold
Contact Finish Thickness	30 µin
Current Rating	1.5 A
Mounting Type	Free Hanging (In-Line)
Number of Positions	110
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.079 in
Termination	Press-Fit
Voltage Rating	500 V

Z-PACK 2mm HM Series

...

Part	Connector Style	Number of Rows	Connector Type	Mounting Type	Contact Finish Thickness	Termination	Contact Finish	Number of Positions Loaded	Pitch	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Current Rating	Connector Usage	Tool Type	For Use With/Related Products	Features	Specifications	Accessory Type	Number of Rows (Part 2)	Number of Rows (Part 1)	Position Types
TE Connectivity AMP Connectors 5646446-1	F 11	8	Female Sockets Receptacle	Board Edge Right Angle Through Hole	30 µin	Press-Fit	Gold	All	0.079 in	88	125 °C	-55 °C	750 VDC	1.5 A
TE Connectivity AMP Connectors 5106773-1	A 22	5	Female Sockets Receptacle	Through Hole	30 µin	Press-Fit	Gold	All	0.079 in	110	125 °C	-55 °C	500 V	1.5 A	Backplane
TE Connectivity AMP Connectors 1338905-1																Extraction Tool	Terminals
TE Connectivity AMP Connectors 5352069-1	B 25	5	Female Sockets Receptacle	Right Angle Through Hole	50 µin	Press-Fit	Gold	All	0.079 in	125	125 °C	-55 °C	500 V	1.5 A				Upper Shield
TE Connectivity AMP Connectors 100525-5																	Z-Pack Series		Blue	Coding Keys
TE Connectivity AMP Connectors 4-100525-3																	Z-Pack Series		Gray	Coding Keys
TE Connectivity AMP Connectors 1-100526-8																	Z-Pack Series		Blue	Coding Keys
TE Connectivity AMP Connectors 3-100141-0	B 25	5	Header Male Pins	Through Hole		Press-Fit		All	0.079 in	125					Backplane
TE Connectivity AMP Connectors 6345051-1	A 22		Header Male Pins	Through Hole	30 µin	Press-Fit	Gold	All	0.079 in	154	125 °C	-55 °C	500 V	1.5 A	Backplane						2	5	Ground
TE Connectivity AMP Connectors 5100141-1	B 25	5	Header Male Pins	Through Hole	30 µin	Press-Fit	Gold	All	0.079 in	125					Backplane
