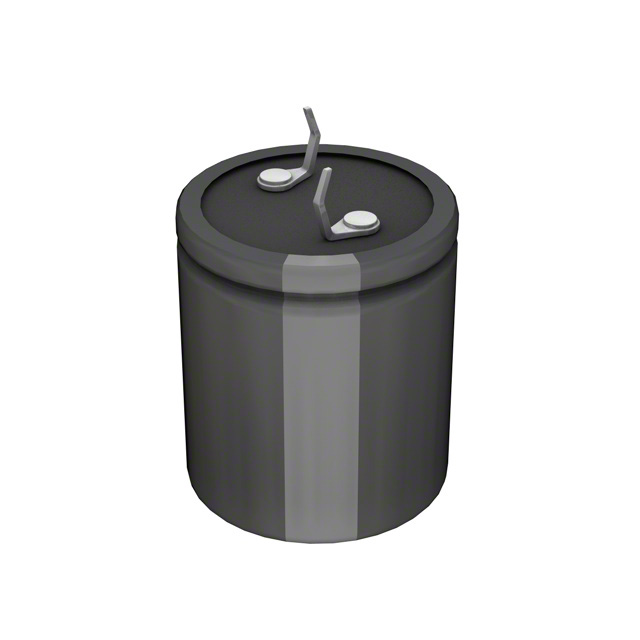

LPW102M1JN25V-W
ObsoleteCornell Dubilier Knowles
CAP ALUM 1000UF 20% 63V SNAP TH
LPW102M1JN25V-W
ObsoleteCornell Dubilier Knowles
CAP ALUM 1000UF 20% 63V SNAP TH
Description
General part information
LPW102M1JN25V-W
1000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 414mOhm @ 120Hz 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LPW102M1JN25V-W |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 µF |
| ESR (Equivalent Series Resistance) | 414 mOhm |
| Height - Seated (Max) | 0.984 in |
| Lead Spacing | 0.394 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 1.42 A, 1.704 A |
| Size / Dimension Diameter | 0.866 in |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
