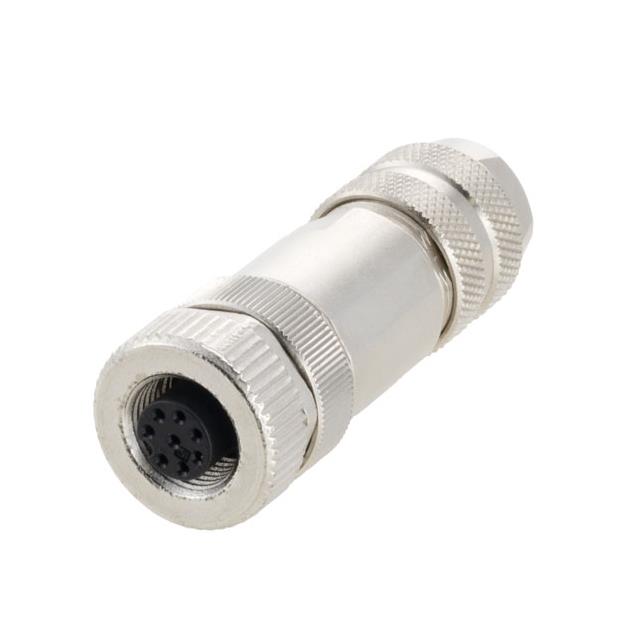

Specification	M12FT8AFS

Cable Opening (Max)	0.315 in
Cable Opening (Min)	0.236 in
Color	Silver
Connector Type	Female Sockets, Plug
Current Rating	2 A
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-8
Shielding	Shielded
Termination	Screw
Voltage Rating	30 V
Voltage Rating (Type)	DC, AC
