Description
General part information

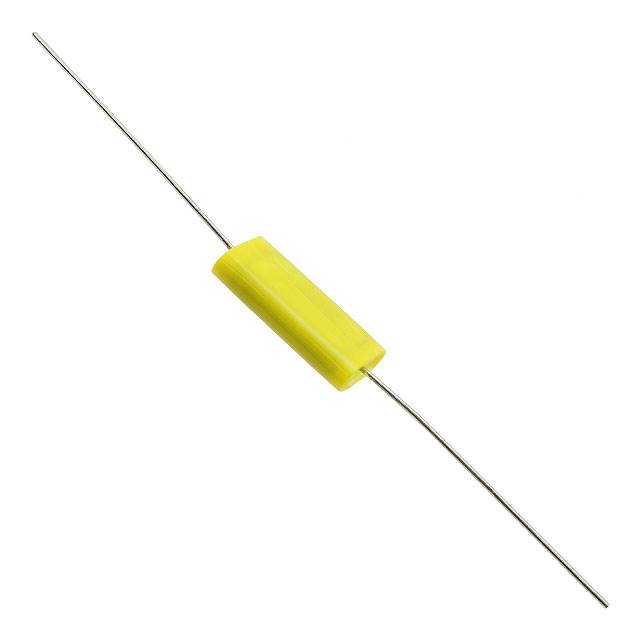

QAK2E684KTP
0.68 µF Film Capacitor 250V Polyester, Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | QAK2E684KTP |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.68 µF |
| Dielectric Material | Polyester, Metallized |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Size / Dimension Length | 0.906 in |
| Size / Dimension Thickness | 0.217 in |
| Size / Dimension Width | 0.512 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 250 VDC |
