Description
General part information
00407202

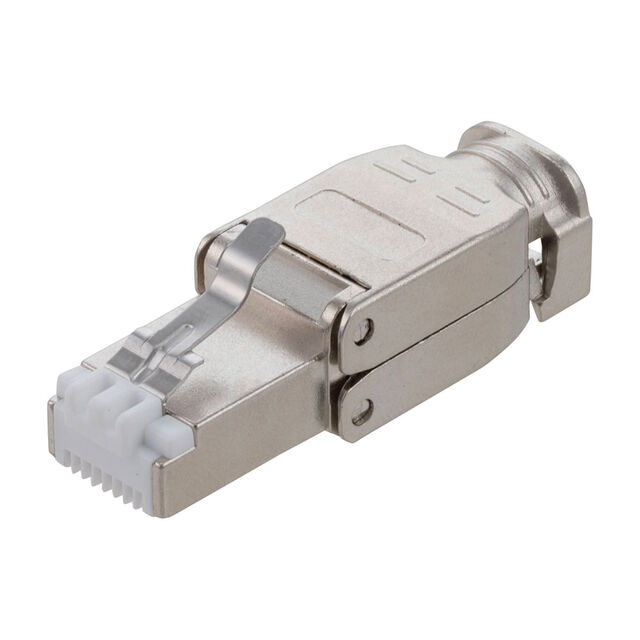

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6a Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 00407202 |
|---|---|
| Cable Type | Stranded Wires, Flat Oval Cable |
| Connector Type | Plug, Ethernet, RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 µin |
| Contact Material | Phosphor Bronze |
| Housing Material | PC, Polycarbonate |
| Length | 1.66 in |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Ratings | Cat6a |
| Shielding | Shielded |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
