42R02-1111
ActivePower Dynamics, Inc.

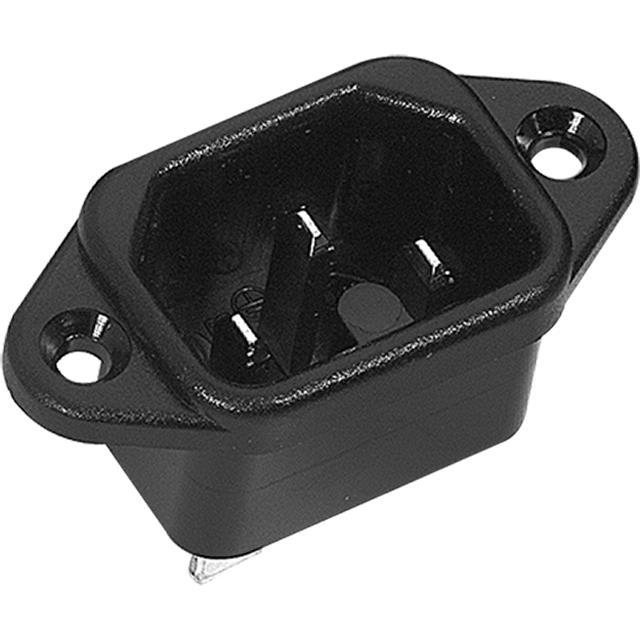

PWR ENT RCPT IEC320-C16 PANEL QC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
42R02-1111
ActivePower Dynamics, Inc.
PWR ENT RCPT IEC320-C16 PANEL QC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 42R02-1111 | 42R02 Series |
|---|---|---|
| Accomodates a Fuse | - | False |
| Approval Agency | UL, VDE, CSA | UL, VDE, CSA, cUL |
| Connector Style | IEC 320-C16 | IEC 320-C14, IEC 320-C16 |
| Connector Type | Receptacle, Female Sockets | Male Blades, Receptacle, Male Pins, Receptacle, Male Pins - Module, Receptacle, Male Blades - Module, Receptacle, Female Sockets |
| Filter Type | - | Unfiltered - Commercial |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | - | Panel Mount, Snap-In, Flange |
| Panel Cutout Dimensions [x] | 27 mm | 20 - 27.5 mm |
| Panel Cutout Dimensions [y] | 20 mm | 20 - 27.5 mm |
| Panel Thickness | - | 0.059 in |
| Panel Thickness | - | 1.5 mm |
| Termination | 0.187 " | 0.187 - 0.25 in |
| Termination | 4.7 mm | 4.7 - 6.3 mm |
| Termination | Quick Connect | Quick Connect |
42R02 Series
PWR ENT RCPT IEC320-C14 PANEL QC
| Part | Material Flammability Rating | Accomodates a Fuse | Connector Style | Filter Type | Panel Thickness [custom] | Panel Thickness [custom] | Mounting Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Approval Agency | Connector Type | Termination | Termination | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Power Dynamics, Inc. 42R02-3212-150 | UL94 V-0 | IEC 320-C14 | Unfiltered - Commercial | 0.059 in | 1.5 mm | Panel Mount, Snap-In | 27.5 mm | 20 mm | CSA, UL, VDE | Male Blades, Receptacle | 0.25 in | 6.3 mm | Quick Connect | |
Power Dynamics, Inc. 42R02-4212E | UL94 V-0 | IEC 320-C14 | Flange, Panel Mount | 20 mm | 27.5 mm | CSA, UL, VDE | Male Pins, Receptacle | 0.187 " | 4.7 mm | Quick Connect | ||||
Power Dynamics, Inc. 42R02-4122 | UL94 V-0 | IEC 320-C14 | 20 mm | 27.5 mm | CSA, UL, VDE | Receptacle, Male Pins - Module | 0.187 " | 4.7 mm | Quick Connect | |||||
Power Dynamics, Inc. 42R02-4112 | UL94 V-0 | IEC 320-C14 | 20 mm | 27.5 mm | CSA, UL, VDE | Receptacle, Male Pins - Module | 0.187 " | 4.7 mm | Quick Connect | |||||
Power Dynamics, Inc. 42R02-4212 | UL94 V-0 | IEC 320-C14 | 20 mm | 27.5 mm | cUL, UL, VDE | Receptacle, Male Blades - Module | 0.25 in | 6.3 mm | Quick Connect | |||||
Power Dynamics, Inc. 42R02-1211 | UL94 V-0 | IEC 320-C16 | 20 mm | 27.5 mm | CSA, UL, VDE | Receptacle, Male Pins - Module | 0.25 in | 6.3 mm | Quick Connect | |||||
Power Dynamics, Inc. 42R02-1111 | UL94 V-0 | IEC 320-C16 | 20 mm | 27 mm | CSA, UL, VDE | Receptacle, Female Sockets | 0.187 " | 4.7 mm | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.93 | |
| 10 | $ 1.88 | |||
| 50 | $ 1.63 | |||
| 100 | $ 1.58 | |||
Description
General part information
42R02 Series
Power Entry Connector Receptacle, Female Sockets IEC 320-C16 Panel Mount
Documents
Technical documentation and resources
