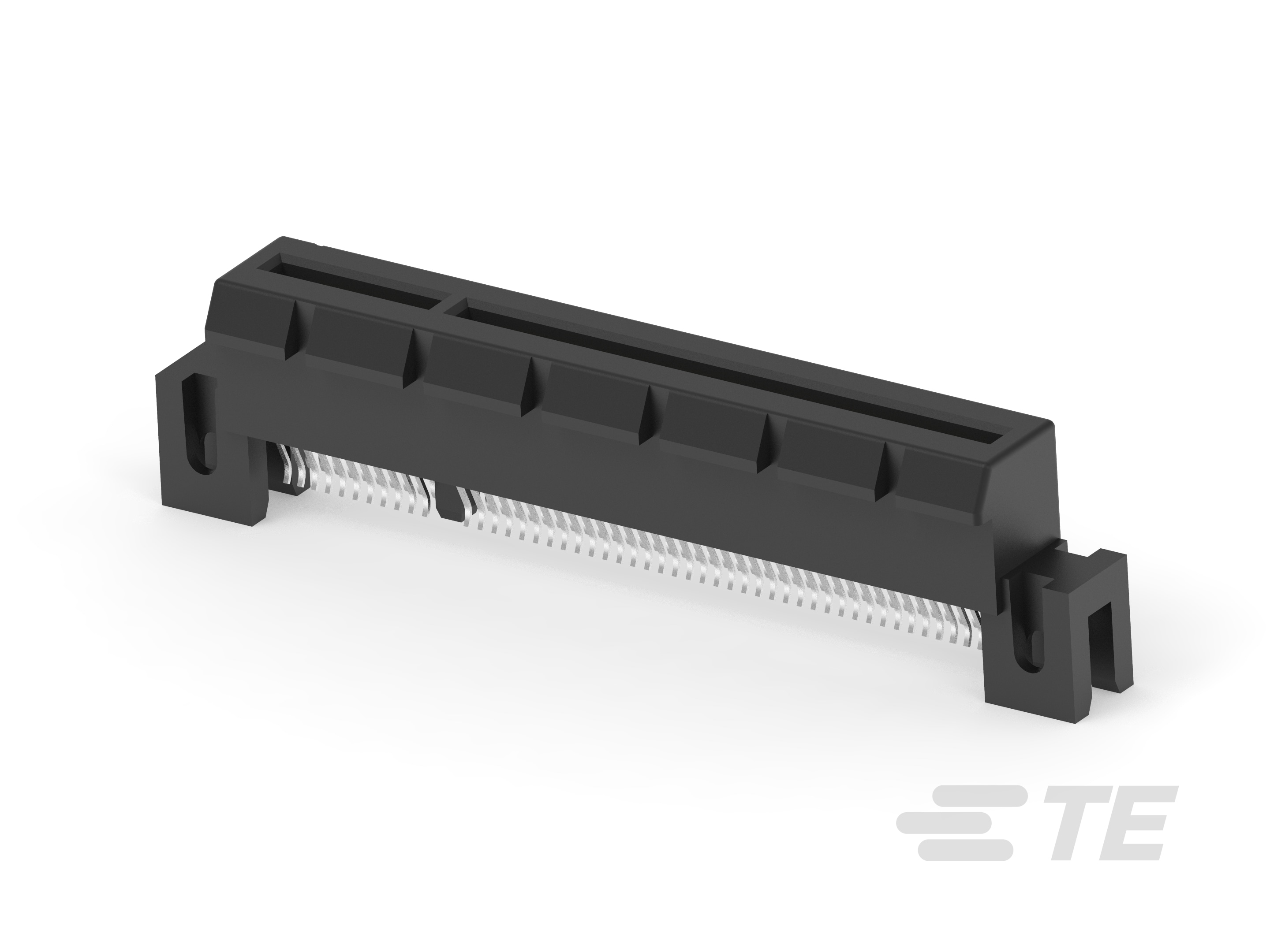

2-2041255-5
Board-to-Board, 98 Position, 1 mm [.039 in] Centerline, Straddle Mount, Black, 8.8 mm [.346 in] Height, Signal, PCI & PCI Express Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2041255-5 |
|---|---|
| Card Thickness | 0.091 in |
| Card Type | PCI Express™ |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Material | Phosphor Bronze |
| Contact Type | Cantilever |
| Features | Locking Ramp |
| Gender | Female |
| Mounting Type | Straddle Mount, Board Edge |
| Number of Bay | 38 |
| Number of Positions | 11, 98 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.039 in |
| Read Out | Dual |
| Termination | Solder |
