BK/ATM-4
ActiveEaton - Electronics Division

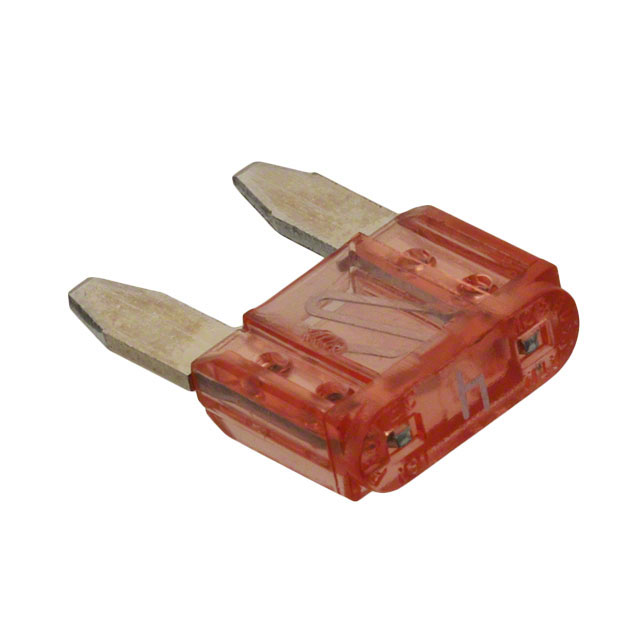

FUSE AUTOMOTIVE 4A 32VDC BLADE
BK/ATM-4
ActiveEaton - Electronics Division
FUSE AUTOMOTIVE 4A 32VDC BLADE
Description
General part information
BK/ATM-4
4 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/ATM-4 |
|---|---|
| Breaking Capacity | 1 kA |
| Color | Pink |
| Current Rating | 4 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | Blade, Miniature |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.347 in |
| Size / Dimension Length | 0.43 in |
| Size / Dimension Width | 0.15 in |
| Voltage Rating - DC | 32 V |
