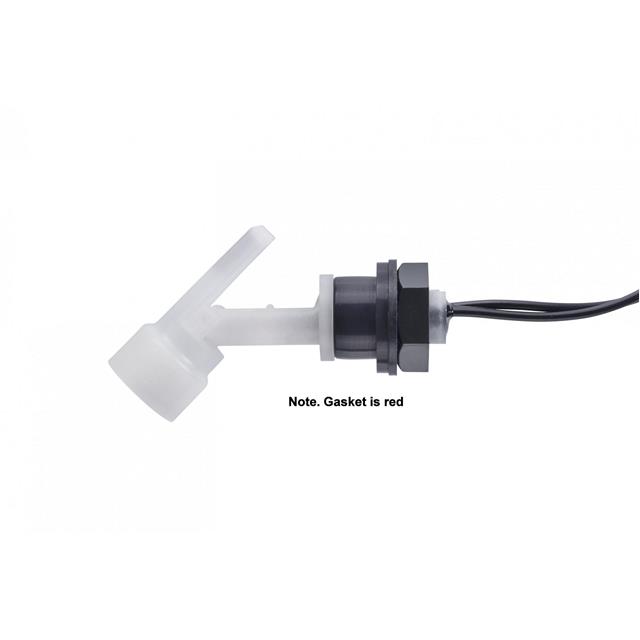

Specification	LLF74Y100RM

Current	600 mA
Material - Housing & Prism	PP, Polypropylene
Minimum Liquid Specific Gravity	0.7
Mounting Size	25.4 mm
Mounting Type	Male NPT
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-20 °C
Output Configuration	SPST-NC, NO
Output Type	Switch (Single Float)
Switch Actuation Level	0.394 "
Type	Liquid
Voltage Rating	120 V

LLF70 Series

Part	Voltage Rating	Minimum Liquid Specific Gravity	Current	Mounting Size	Mounting Type	Output Type	Type	Output Configuration	Switch Actuation Level	Material - Housing & Prism	Operating Temperature (Min)	Operating Temperature (Max)
Sensata-Crydom LLF73Y100RM	120 V	0.7	600 mA	25.4 mm	Male NPT	Switch (Single Float)	Liquid	NO SPST-NC	0.394 "	Nylon	-20 °C	75 °C
Sensata-Crydom LLF76HNP	300 VAC/DC	0.7	1 A		M12 Thread Panel Mount	Switch (Single Float)	Liquid	NO SPST-NC	0.394 "	Polyphenylene Sulphide PPS	-10 °C	120 °C
Sensata-Crydom LLF77YNP	120 V	0.7	600 mA		M12 Thread Panel Mount	Switch (Single Float)	Liquid	NO SPST-NC	0.394 "	Polyvinylidene Fluoride PVDF	-10 °C	105 °C
Sensata-Crydom LLF77Y100GV	120 V	0.7	600 mA	25.4 mm	Male NPT	Switch (Single Float)	Liquid	NO SPST-NC	0.394 "	Polyvinylidene Fluoride PVDF	-10 °C	105 °C
Sensata-Crydom LLF76Y100RN	120 V	0.7	600 mA	25.4 mm	Male NPT	Switch (Single Float)	Liquid	NO SPST-NC	0.394 "	Polyphenylene Sulphide PPS	-10 °C	120 °C
Sensata-Crydom LLF77HNP	300 VAC/DC	0.7	1 A		M12 Thread Panel Mount	Switch (Single Float)	Liquid	NO SPST-NC	0.394 "	Polyvinylidene Fluoride PVDF	-10 °C	105 °C
Sensata-Crydom LLF73HNP	300 VAC/DC	0.7	1 A		M12 Thread Panel Mount	Switch (Single Float)	Liquid	NO SPST-NC	0.394 "	Nylon	-20 °C	75 °C
Sensata-Crydom LLF77H100GV	300 VAC/DC	0.7	1 A	25.4 mm	Male NPT	Switch (Single Float)	Liquid	NO SPST-NC	0.394 "	Polyvinylidene Fluoride PVDF	-10 °C	105 °C
Sensata-Crydom LLF77Y100GN	120 V	0.7	600 mA	25.4 mm	Male NPT	Switch (Single Float)	Liquid	NO SPST-NC	0.394 "	Polyvinylidene Fluoride PVDF	-10 °C	105 °C
Sensata-Crydom LLF77HVP	300 VAC/DC	0.7	1 A		M12 Thread Panel Mount	Switch (Single Float)	Liquid	NO SPST-NC	0.394 "	Polyvinylidene Fluoride PVDF	-10 °C	105 °C
