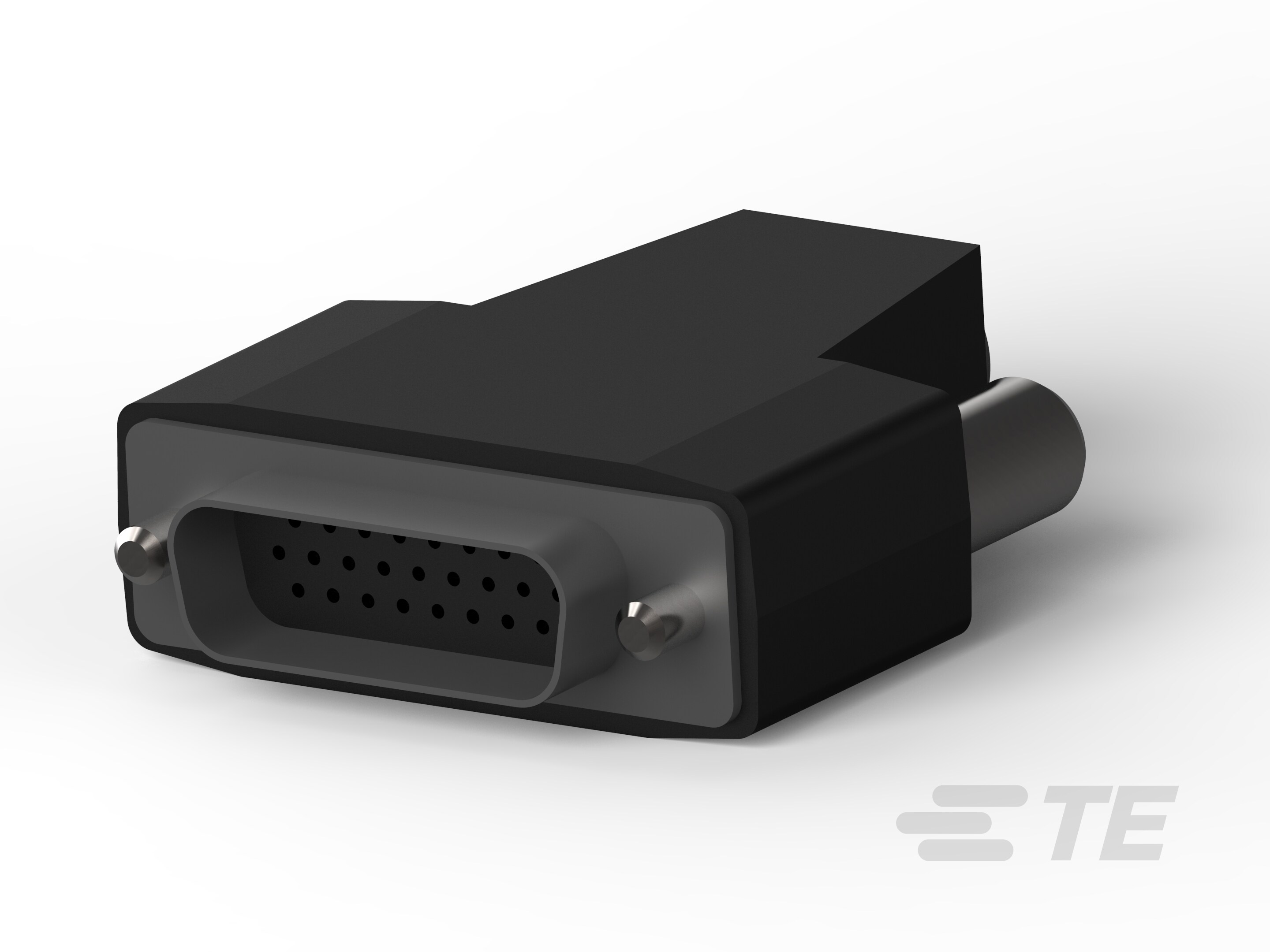

KIT,HDP-22,ENCLSUR,PLUG,SIZE 2-1658679-1

1658679-1

Active
TE Connectivity AMP Connectors

CONN D-SUB HD HOUSING PLUG 26POS

Find alt
KIT,HDP-22,ENCLSUR,PLUG,SIZE 2-1658679-1

1658679-1

Active
TE Connectivity AMP Connectors

CONN D-SUB HD HOUSING PLUG 26POS

Find alt

Description

General part information

1658679-1

26 Position D-Shaped Connector, Plug, Cable-to-Cable, Panel Mount, 2 Shell Size, 2.29 mm [.09 in] Centerline, Wire & Cable, Signal

Technical Specifications

Parameters and characteristics for this part

Specification1658679-1
Connector LayoutDA, A, High Density
Connector StyleHigh Density, D-Sub
Connector TypePlug for Male Contacts
Contact TypeSignal
FeaturesGrounding Indents, Backshell, Shielded
FinishTin Plated
Flange FeatureCable Side (4-40)
Mounting TypeFree Hanging (In-Line)
Number of Positions26
Number of Rows3
Shell Finish Thickness200 µin
Shell MaterialSteel
Shell Size2
