1000418

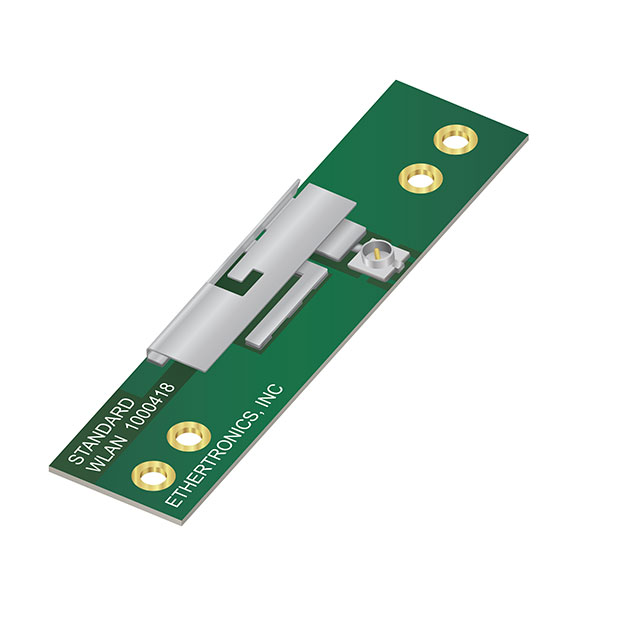

RF ANTENNA 802.11a/b/g/n/c, Bluetooth, Wi-Fi, WLAN, Zigbee™ Stamped Metal U.FL Screw Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1000418 |
|---|---|
| Antenna Type | Stamped Metal |
| Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™, 802.11a/b/g/n/c |
| Frequency (Center/Band) | 5.8GHz, 4.9GHz, 5.2GHz, 2.4GHz |
| Frequency (Center/Band) - 1 | 2.4 GHz |
| Frequency (Center/Band) - 2 | 4.9 GHz |
| Frequency (Center/Band) - 3 | 5.2 GHz |
| Frequency (Center/Band) - 4 | 5.8 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.485 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.85 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Gain | 4.2 dBi, 4 dBi |
| Height (Max) | 0.201 in |
| Mounting Type | Screw Mount |
| Number of Bands | 2 |
| RF Family/Standard | WiFi, Cellular, Bluetooth |
| Termination | U.FL |
| VSWR | 2.1 |
