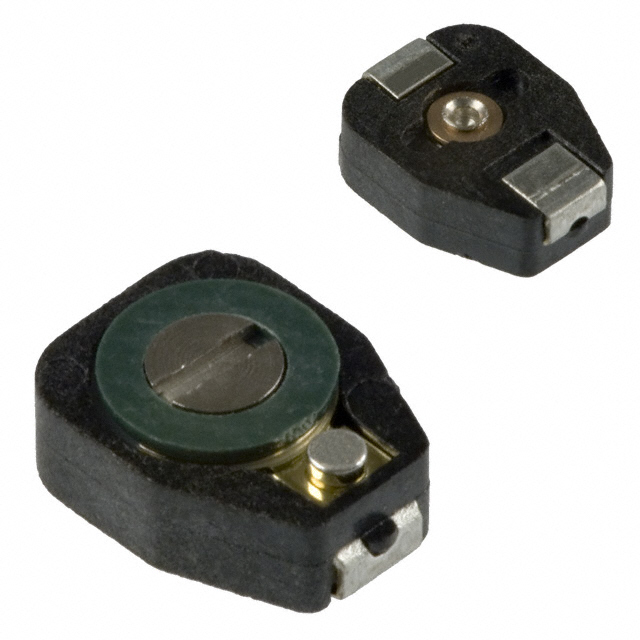

2807S1R020NHD4BAA
ObsoleteVishay Dale
CAP TRIMMER 0.7-20PF 100V SMD
2807S1R020NHD4BAA
ObsoleteVishay Dale
CAP TRIMMER 0.7-20PF 100V SMD
Description
General part information
2807S1R020NHD4BAA
0.7 ~ 20pF Trimmer Capacitor 100 V Top Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 2807S1R020NHD4BAA |
|---|---|
| Adjustment Type | Top |
| Capacitance Range (Max) | 20 pF |
| Capacitance Range (Min) | 0.7 pF |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | General Purpose |
| Height - Seated (Max) | 0.1 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Q | 1000 |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.213 in |
| Voltage - Rated | 100 VAC/DC |
