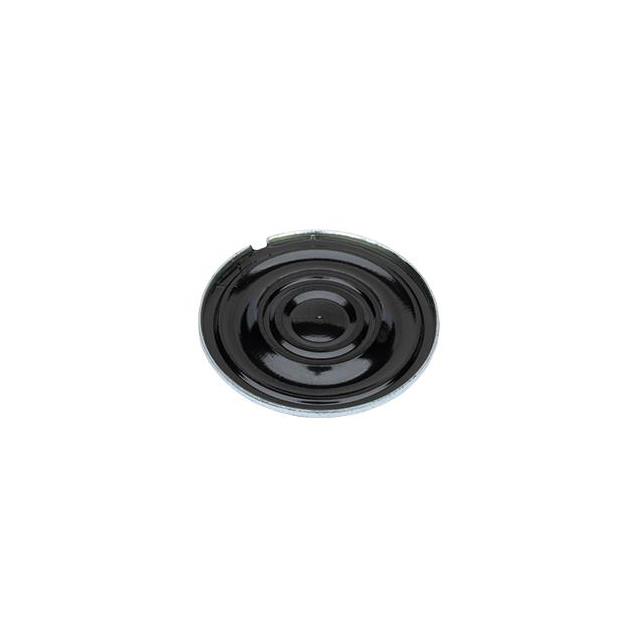

CDS-203-32-SP
ActiveSame Sky (Formerly CUI Devices)
SPEAKR 32OHM 500MW TOP PORT 89DB
CDS-203-32-SP
ActiveSame Sky (Formerly CUI Devices)
SPEAKR 32OHM 500MW TOP PORT 89DB
Description
General part information
CDS-203-32-SP
32 Ohms General Purpose Speaker 500 mW 680 Hz ~ 10 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | CDS-203-32-SP |
|---|---|
| Distortion Rating | 5 % |
| Distortion Rating Power | 0.5 W |
| Efficiency - dBA | 89 dBA |
| Efficiency - Testing Length | 100 mm |
| Efficiency - Testing Power | 100 mW |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 850 Hz |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 680 Hz |
| Height - Seated (Max) | 0.118 in |
| Impedance | 32 Ohms |
| Material - Cone | Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Power - Max | 1 VA |
| Power - Rated | 500 mW |
| Shape | Round |
| Size / Dimension Diameter | 0.787 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
