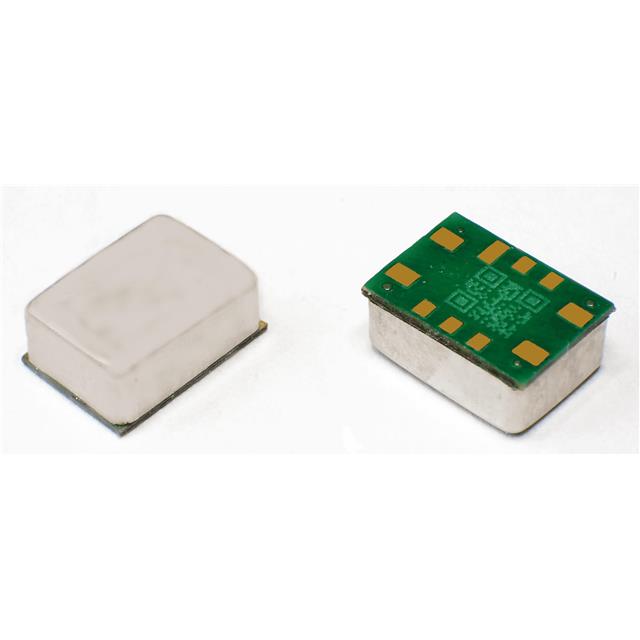

OHA4005-10.0M
ActivePletronics, Inc
CRYSTAL OSC OCXO 10.0MHZ CMOS 7M
OHA4005-10.0M
ActivePletronics, Inc
CRYSTAL OSC OCXO 10.0MHZ CMOS 7M
Description
General part information
OHA4005-10.0M
10 MHz OCXO CMOS Oscillator 3.3V 10-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | OHA4005-10.0M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 230 mA |
| Frequency | 10 MHz |
| Frequency Stability | 20 ppb |
| Height - Seated (Max) | 0.138 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension Length | 0.295 in |
| Size / Dimension Width | 0.217 in |
| Type | OCXO |
| Voltage - Supply | 3.3 V |
