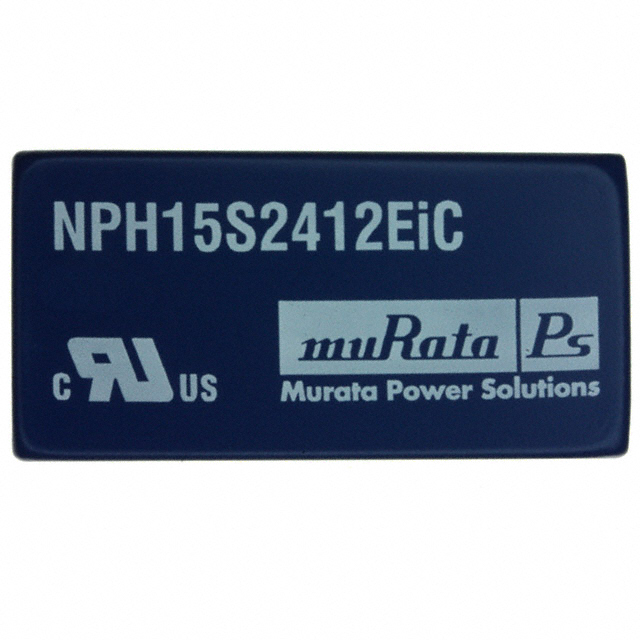

NPH15S2412EIC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12.1V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NPH15S2412EIC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12.1V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NPH15S2412EIC | NPH15S24 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.3 A | 1 - 4.4 A |
| Efficiency | 86 % | 81 - 87 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 6-DIP Module | 6-DIP Module |
| Power (Watts) | 15 W | 15 W |
| Size / Dimension [x] | 1.97 " | 1.97 " |
| Size / Dimension [x] | 50 mm | 50 mm |
| Size / Dimension [y] | 24.9 mm | 24.9 mm |
| Size / Dimension [y] | 0.98 in | 0.98 in |
| Size / Dimension [z] | 9.9 mm | 9.9 mm |
| Size / Dimension [z] | 0.39 in | 0.39 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 V |
| Voltage - Input (Min) [Min] | 18 V | 18 V |
| Voltage - Isolation | 1.5 kV | 1.5 kV |
| Voltage - Output 1 | 12.1 V | 3.4 - 15.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
NPH15S24 Series
DC DC CONVERTER 15.1V 15W
| Part | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Isolation | Type | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Applications | Efficiency | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NPH15S2415EIC | 1 | 24.9 mm | 9.9 mm | 1.97 " | 0.39 in | 0.98 in | 50 mm | 6-DIP Module | 18 V | 36 V | Through Hole | 1.5 kV | Isolated Module | 15.1 V | -40 °C | 110 °C | 1 A | ITE (Commercial) | 87 % | 15 W |
Murata Power Solutions Inc. NPH15S2405IC | 1 | 24.9 mm | 9.9 mm | 1.97 " | 0.39 in | 0.98 in | 50 mm | 6-DIP Module | 18 V | 36 V | Through Hole | 1.5 kV | Isolated Module | 5.1 V | -40 °C | 110 °C | 3 A | ITE (Commercial) | 84 % | 15 W |
Murata Power Solutions Inc. NPH15S2405EIC | 1 | 24.9 mm | 9.9 mm | 1.97 " | 0.39 in | 0.98 in | 50 mm | 6-DIP Module | 18 V | 36 V | Through Hole | 1.5 kV | Isolated Module | 5.1 V | -40 °C | 110 °C | 3 A | ITE (Commercial) | 84 % | 15 W |
Murata Power Solutions Inc. NPH15S2403IC | 1 | 24.9 mm | 9.9 mm | 1.97 " | 0.39 in | 0.98 in | 50 mm | 6-DIP Module | 18 V | 36 V | Through Hole | 1.5 kV | Isolated Module | 3.4 V | -40 °C | 110 °C | 4.4 A | ITE (Commercial) | 81 % | 15 W |
Murata Power Solutions Inc. NPH15S2412EIC | 1 | 24.9 mm | 9.9 mm | 1.97 " | 0.39 in | 0.98 in | 50 mm | 6-DIP Module | 18 V | 36 V | Through Hole | 1.5 kV | Isolated Module | 12.1 V | -40 °C | 110 °C | 1.3 A | ITE (Commercial) | 86 % | 15 W |
Murata Power Solutions Inc. NPH15S2415IC | 1 | 24.9 mm | 9.9 mm | 1.97 " | 0.39 in | 0.98 in | 50 mm | 6-DIP Module | 18 V | 36 V | Through Hole | 1.5 kV | Isolated Module | 15.1 V | -40 °C | 110 °C | 1 A | ITE (Commercial) | 87 % | 15 W |
Murata Power Solutions Inc. NPH15S2412IC | 1 | 24.9 mm | 9.9 mm | 1.97 " | 0.39 in | 0.98 in | 50 mm | 6-DIP Module | 18 V | 36 V | Through Hole | 1.5 kV | Isolated Module | 12.1 V | -40 °C | 110 °C | 1.3 A | ITE (Commercial) | 86 % | 15 W |
Description
General part information
NPH15S24 Series
Isolated Module DC DC Converter 1 Output 12.1V 1.3A 18V - 36V Input
