85106JC833S50
UnknownAmphenol Aerospace Operations
CONN PLUG FMALE 3P GOLD SLDR CUP
85106JC833S50
UnknownAmphenol Aerospace Operations
CONN PLUG FMALE 3P GOLD SLDR CUP
Description
General part information
85106JC833S50

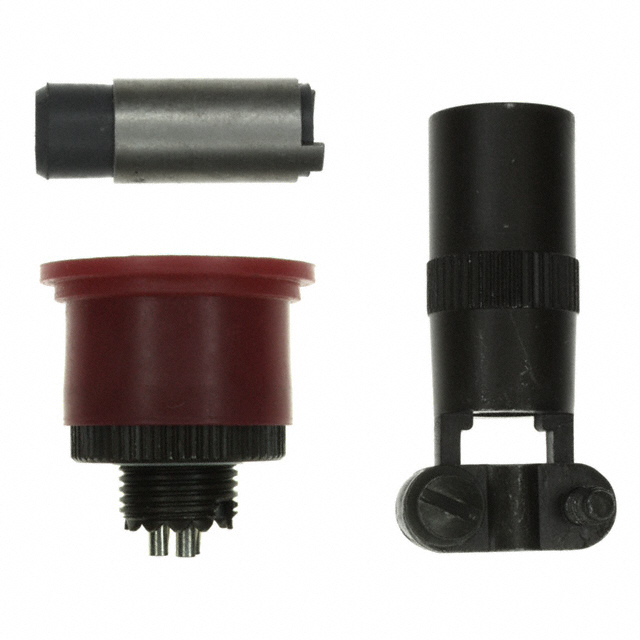

3 Position Circular Connector Plug, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 85106JC833S50 |
|---|---|
| Applications | Military, Aviation, Industrial |
| Backshell Material, Plating | Aluminum Alloy, Olive Drab Cadmium |
| Cable Opening (Max) | 0.23 in |
| Cable Opening (Min) | 0.198 in |
| Color | Olive Green |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Cable Clamp, Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP68, IP67 |
| Insert Material | Neoprene |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 |
| Shell Finish | Olive Green Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert (Maximum) | 33 |
| Shell Size - Insert (Minimum) | 8 |
| Shielding | Shielded |
| Termination | Solder Cup |
