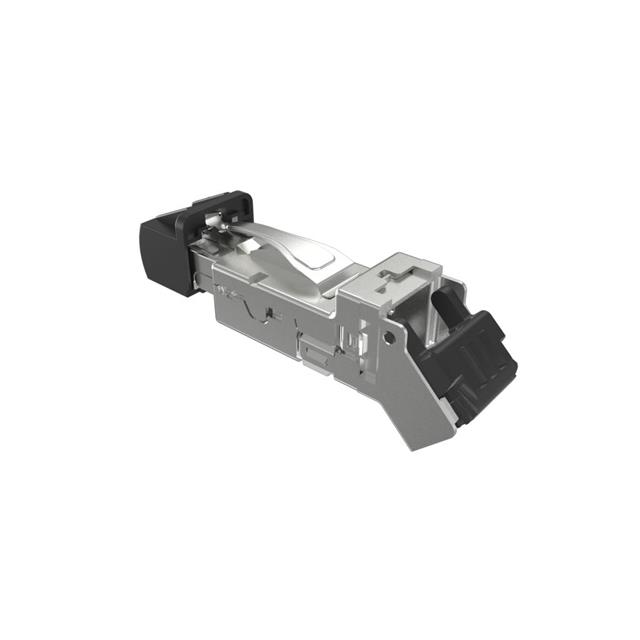

DRP10188500011
ActiveAmphenol ICC (Commercial Products)
PLUG, CAT6A, INDUSTRIAL RJ45, 45
DRP10188500011
ActiveAmphenol ICC (Commercial Products)
PLUG, CAT6A, INDUSTRIAL RJ45, 45
Description
General part information
DRP10188500011
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6a IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | DRP10188500011 |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable |
| Color | Black |
| Connector Type | Plug, Ethernet, RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Copper Alloy |
| Features | Strain Relief, Toolless, Angled (45°) |
| Housing Material | Thermoplastic |
| Length | 0.541 in |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Ratings | Cat6a |
| Shield Material | Zinc Die Cast |
| Shielding | Shielded |
| Termination | IDC |
| Wire Gauge (AWG) (Max) | 23 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
