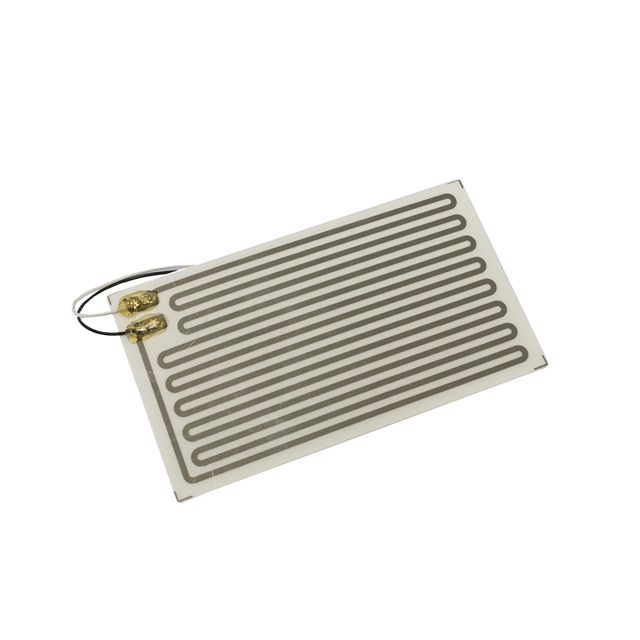

DK0105PA

Active

Thermo Heating Elements

1.0 X 5.0 IN. POLYMER THICK FILM

Search across all available documentation for this part.

Active

Thermo Heating Elements

1.0 X 5.0 IN. POLYMER THICK FILM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4	$ 43.95

General part information

1.0 X 5.0 IN. POLYMER THICK FILM

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	DK0105PA	DK0105 Series

Attachment Method	Pressure Sensitive Adhesive (PSA)	Pressure Sensitive Adhesive (PSA)
Color	Black	Black
Length - Lead Wire [x]	12 in	12 in
Length - Lead Wire [x]	304.8 mm	304.8 mm
Length [x]	1 in	1 in
Length [x]	25.4 mm	25.4 mm
Material	Polyester	Silicone Rubber, Polyester
Material - Insulation	Polyvinyl Chloride (PVC)	Polytetrafluoroethylene (PTFE), Polyvinyl Chloride (PVC)
Power (Watts)	-	10 W
Resistance	57.6 Ohms	57.6 Ohms
Shape	Rectangular	Rectangular
Temperature Rating	239 °F	239 - 428 °F
Temperature Rating	115 °C	115 - 220 °C
Termination	Wire Leads	Wire Leads
Type	Flexible Heater, Printed	Flexible Heater, Printed
Watt Density @ 12V	500 mW/in²	2 - 500 W/in²
Width [y]	127 mm	127 mm
Width [y]	5 in	5 in
Wire Gauge	20 AWG	20 AWG

1.0 X 5.0 IN. SILICONE RUBBER HE

Part	Temperature Rating	Temperature Rating	Termination	Shape	Material - Insulation	Power (Watts)	Length [x]	Length [x]	Resistance	Color	Material	Wire Gauge	Attachment Method	Watt Density @ 12V	Length - Lead Wire [x]	Length - Lead Wire [x]	Width [y]	Width [y]	Type
Thermo Heating Elements DK0105SA	428 °F	220 °C	Wire Leads	Rectangular	Polytetrafluoroethylene (PTFE)	10 W	1 in	25.4 mm	57.6 Ohms	Black	Silicone Rubber	20 AWG	Pressure Sensitive Adhesive (PSA)	2 W/in²	12 in	304.8 mm	127 mm	5 in
Thermo Heating Elements DK0105PA	239 °F	115 °C	Wire Leads	Rectangular	Polyvinyl Chloride (PVC)		1 in	25.4 mm	57.6 Ohms	Black	Polyester	20 AWG	Pressure Sensitive Adhesive (PSA)	500 mW/in²	12 in	304.8 mm	127 mm	5 in	Flexible Heater, Printed
