EB_FR05-S1-NO-1-003

Obsolete

Ignion

EB_DUAL BAND - 003

Search across all available documentation for this part.

Obsolete

Ignion

EB_DUAL BAND - 003

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EB_FR05-S1-NO-1-003	EB_FR05 Series

For Use With/Related Products	FR05-S1-NO-1-003	FR05-S1-N-0-102, FR05-S1-N-0-110, FR05-S1-NO-1-003, FR05-S1-P-0-107
Frequency [Max]	2.5 GHz, 5.875 GHz	2.5 - 5.875 GHz
Frequency [Min]	4.9 GHz, 2.4 GHz	2.4 - 4.9 GHz
Supplied Contents	Board(s)	Board(s)
Type	Antenna	Antenna

EB_COMPACT REACH XTEND - 102

Part	Supplied Contents	Type	Frequency [Max]	Frequency [Min]	For Use With/Related Products
Ignion EB_FR05-S1-N-0-102	Board(s)	Antenna	2.5 GHz	2.4 GHz	FR05-S1-N-0-102
Ignion EB_FR05-S1-N-0-110	Board(s)	Antenna	2.5 GHz	2.4 GHz	FR05-S1-N-0-110
Ignion EB_FR05-S1-NO-1-003	Board(s)	Antenna	2.5 GHz, 5.875 GHz	2.4 GHz, 4.9 GHz	FR05-S1-NO-1-003
Ignion EB_FR05-S1-P-0-107	Board(s)	Antenna	5 GHz	3.1 GHz	FR05-S1-P-0-107

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

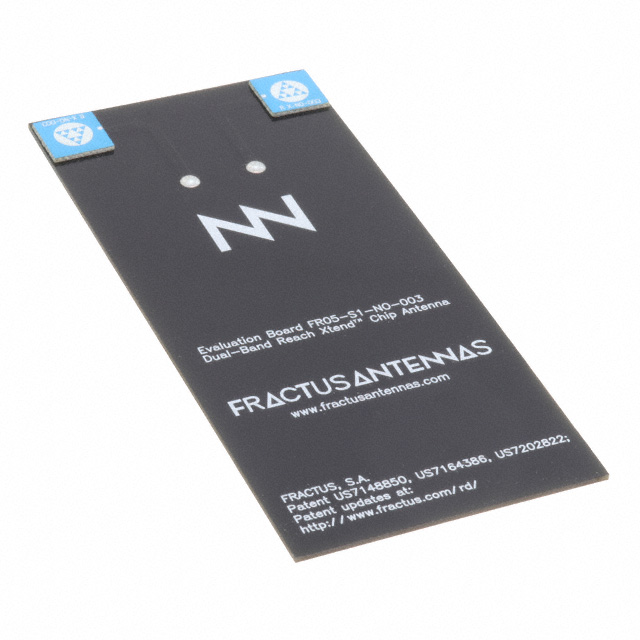

Dual-band Reach Xtend™ FR05-S1-NO-1-003 Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz Evaluation Board

Technical documentation and resources

No documents available
