787170-7

Active

TE Connectivity AMP Connectors

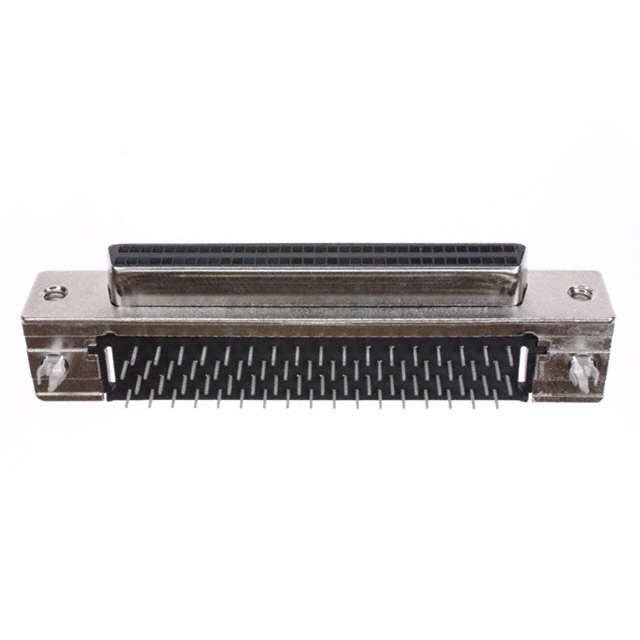

CONN D-TYPE RCPT 68POS R/A SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 68POS R/A SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

68 Position D-Type Receptacle, Female Sockets Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	787170-7	787170 Series

Backset Spacing	3.71 mm	3.71 mm
Backset Spacing	0.146 in	0.146 in
Color	Black	Black
Connector Style	D-Type	D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Dielectric Material	Thermoplastic	Thermoplastic
Features	Shielded, Board Lock	Shielded, Board Lock
Flange Feature	Housing/Shell (4-40)	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge	Through Hole, Right Angle, Board Edge
Number of Positions	68	50 - 68
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05	0.05
Shell Size, Connector Layout [y]	0.1	0.1
Termination	Solder	Solder
Voltage Rating	30 VDC	30 VDC

CONN D-TYPE RCPT 68POS R/A SLDR

Part	Dielectric Material	Number of Positions	Contact Material	Connector Style	Flange Feature	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Finish	Mounting Type	Contact Type	Backset Spacing	Backset Spacing	Color	Number of Rows	Termination	Material Flammability Rating	Shell Material, Finish	Voltage Rating	Connector Type
TE Connectivity AMP Connectors 787170-7	Thermoplastic	68	Phosphor Bronze	D-Type	Housing/Shell (4-40)	0.05	0.1	105 ░C	-55 °C	Board Lock, Shielded	Gold	Board Edge, Right Angle, Through Hole	Signal	3.71 mm	0.146 in	Black	2	Solder	UL94 V-0	Nickel Plated, Steel	30 VDC	Receptacle, Female Sockets
TE Connectivity AMP Connectors 787170-5	Thermoplastic	50	Phosphor Bronze	D-Type	Housing/Shell (4-40)	0.05	0.1	105 ░C	-55 °C	Board Lock, Shielded	Gold	Board Edge, Right Angle, Through Hole	Signal	3.71 mm	0.146 in	Black	2	Solder	UL94 V-0	Nickel Plated, Steel	30 VDC	Receptacle, Female Sockets
