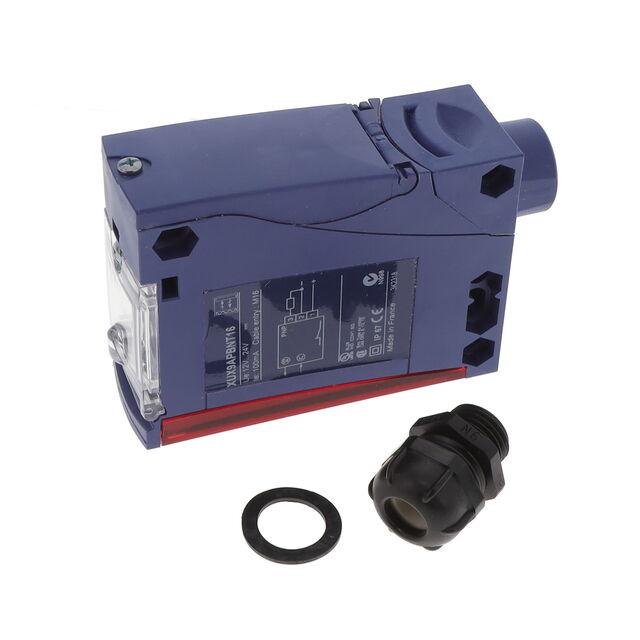

XUX9APBNT16
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSOR COMPACT PNP XUX ROHS COMPLIANT: YES
XUX9APBNT16
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSOR COMPACT PNP XUX ROHS COMPLIANT: YES
Description
General part information
XUX9APBNT16
Reflective Optical Sensor 39.37" (1m) SCR
Technical Specifications
Parameters and characteristics for this part
| Specification | XUX9APBNT16 |
|---|---|
| Connection Method | Terminal |
| Ingress Protection | IP65 |
| Light Source | Red LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | SCR |
| Sensing Distance | 39.37 " |
| Sensing Method | Reflective |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
