Description

General part information

I2R-T2DC-600Y-LC

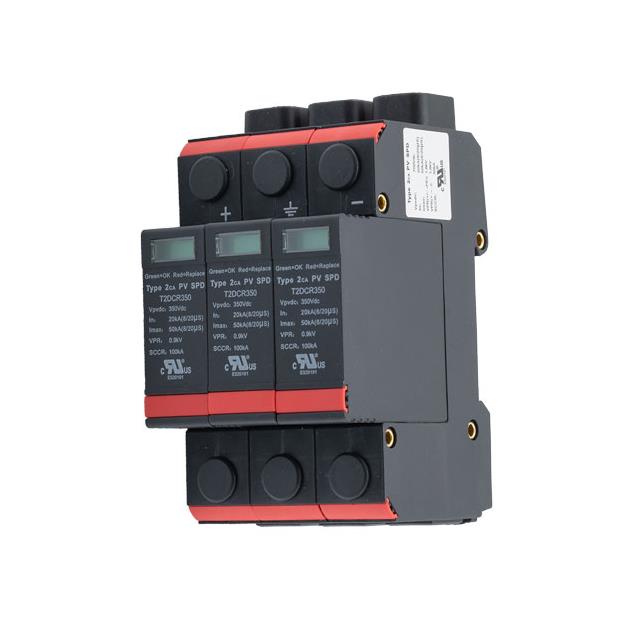

I2R-T2DC-600Y-LC is a DC surge protector (also known as SPD or lightning protector) or DIN-Rail style SPD that utilizes state of the art MOV technology to protect critical equipment that operates on a 600VDC electrical service. This surge protector provides effective protection against electrical transient surges that are generated both by external lightning events and by internal switching events and supports long-term system reliability by safely shunting high amounts of transient energy while maintaining a very low clamping voltage. Application includes communications base stations, industrial automation, photovoltaic power systems, IT & data centers, utilities. Certified by ANSI/UL1449, IEC61643-31, CSA C22.2,ANSI/IEEE C62.41.

Technical Specifications

Parameters and characteristics for this part

SpecificationI2R-T2DC-600Y-LC
Current - Discharge (Nom)20 kA
Current - Short Circuit Rating (SCCR)50 kA
FormModule, Base
Mounting TypeDIN Rail
Number of Poles3
Operating Temperature (Max)50 °C
Operating Temperature (Min)-20 °C
TypeType 2
Voltage - Continuous Operating (Max) (MCOV)670 VAC
Voltage - Protection Rating (VPR)1.8 kV
