B78108S1273K000
ActiveEPCOS - TDK Electronics
FIXED IND 27UH 530MA 830 MOHM TH
B78108S1273K000
ActiveEPCOS - TDK Electronics
FIXED IND 27UH 530MA 830 MOHM TH
Description
General part information
B78108S1273K000

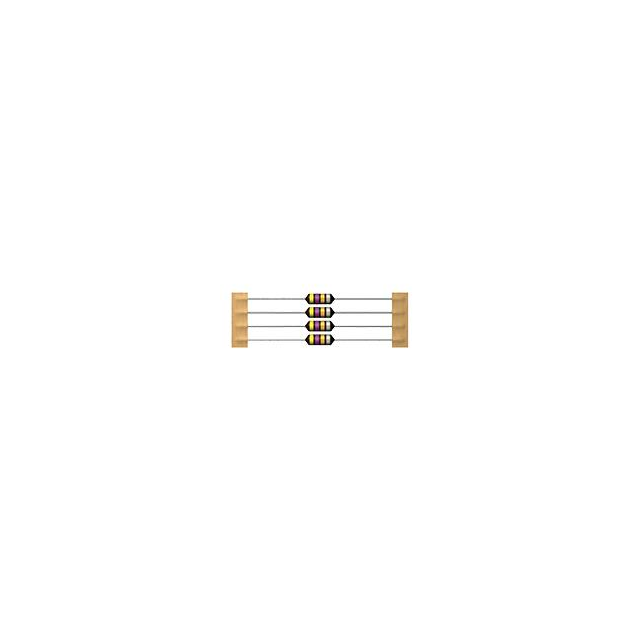

27 µH Unshielded Drum Core, Wirewound Inductor 530 mA 830mOhm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B78108S1273K000 |
|---|---|
| Current Rating | 0.53 A |
| DC Resistance (DCR) (Max) | 830 mOhm |
| Frequency - Self Resonant | 10 MHz |
| Inductance | 27 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 55 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.157 in |
| Size / Dimension Length | 0.362 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
