RC96L2020CQPJ
ActiveCanfield Technologies

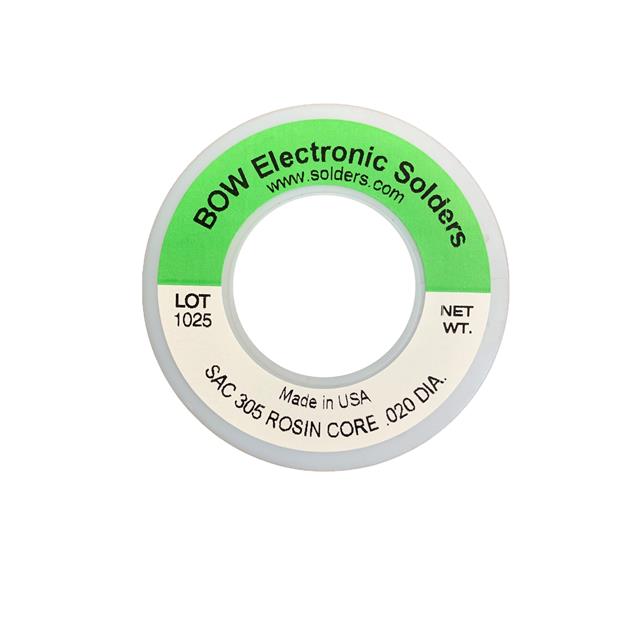

SAC 305 ROSIN FLUX 8 OZ. .020 DI
RC96L2020CQPJ
ActiveCanfield Technologies
SAC 305 ROSIN FLUX 8 OZ. .020 DI
Description
General part information
RC96L2020CQPJ
Lead Free Rosin Activated (RA) Wire Solder Sn96.5Ag3Cu0.5 (96.5/3/0.5) 24 AWG, 25 SWG Spool, 8 oz (227g), 1/2 lb
Technical Specifications
Parameters and characteristics for this part
| Specification | RC96L2020CQPJ |
|---|---|
| Ag Composition | 3 % |
| Composition Elements | Cu, Sn, Ag |
| Composition Formula | Sn96.5Ag3Cu0.5 |
| Cu Composition | 0.5 % |
| Diameter | 0.02 in |
| Flux Type | Rosin Activated (RA) |
| Form | Spool |
| Form Weight | 0.5 lb |
| Melting Point (Max) | 424 °F |
| Melting Point (Min) | 423 °F |
| Process | Lead Free |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Manufacture |
| Sn Composition | 96.5 % |
| Storage/Refrigeration Temperature (Maximum) | 104 °F |
| Storage/Refrigeration Temperature (Minimum) | 50 °F |
| Type | Wire Solder |
| Wire Gauge | 25 SWG, 24 AWG |
