Description
General part information
KPL160-L1CB

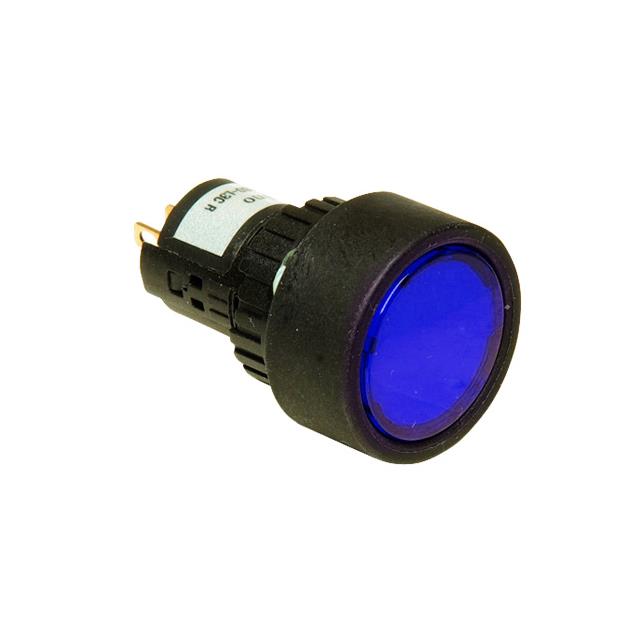

LED Panel Indicator Blue 6V 20mA Quick Connect - 0.110" (2.8mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | KPL160-L1CB |
|---|---|
| Current | 20 mA |
| Ingress Protection | IP40 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Diameter | 25 mm |
| Lens Style | Round, Flat Top |
| Panel Cutout Dimension | 0.63 " |
| Panel Cutout Shape | Round |
| Quick Connect Size (0.110") | 0.11 in |
| Ratings | DC |
| Termination Style | Quick Connect |
| Type | LED |
| Voltage | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
