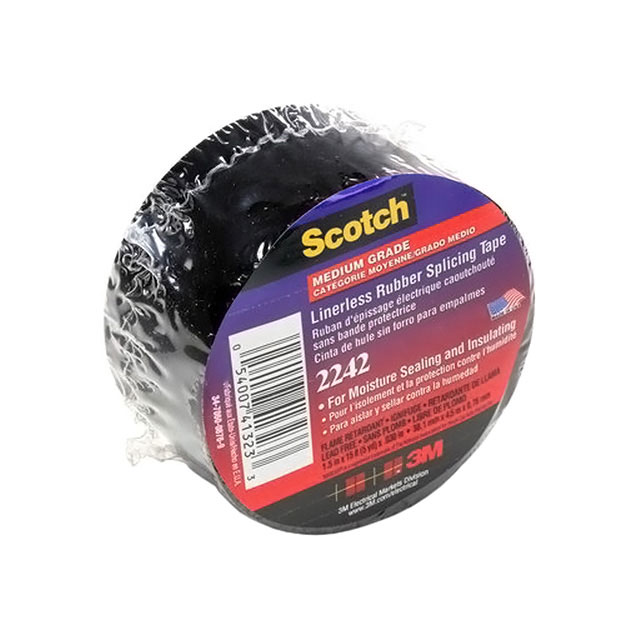

2242-1-1/2X15FT
ActiveTAPE, ELECTRICAL INSULATION, ETHYLENE PROPYLENE RUBBER, BLACK, 15FT L X 1.5" W
Deep-Dive with AI
Search across all available documentation for this part.
2242-1-1/2X15FT
ActiveTAPE, ELECTRICAL INSULATION, ETHYLENE PROPYLENE RUBBER, BLACK, 15FT L X 1.5" W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2242-1-1/2X15FT | 2242 Series |
|---|---|---|
| Adhesive | Rubber, Self Fusing | Rubber, Self Fusing, Rubber |
| Backing, Carrier | Rubber | Rubber, Ethylene Propylene Rubber |
| Color | Black | Black |
| Length | 4.6 m | 4.6 m |
| Length | 15 ft | 15 ft |
| Length | 5 yd | 5 yd |
| Shelf Life | 60 Months | 60 Months |
| Shelf Life Start | Date of Manufacture | Date of Manufacture |
| Storage/Refrigeration Temperature | 70 °F | 69.8 - 70 °F |
| Storage/Refrigeration Temperature | 21 °C | 21 °C |
| Tape Type | Electrical | Electrical |
| Temperature Range | 90 °C | 90 °C |
| Temperature Range | 194 °F | 194 °F |
| Thickness | 0.03 in | 0.03 in |
| Thickness | 0.762 mm | 0.762 mm |
| Thickness | 0.762 mm | 0.762 mm |
| Usage | Electrically Insulating | Electrically Insulating |
| Width | 1.5 " | 0.75 - 1.5 " |
| Width | 38.1 mm | 0.75 - 38.1 mm |
| Width | 1 1/2 | 1 1/2 |
| Width | - | 19.05 mm |
| Width | - | 2 " |
| Width | - | 50.8 mm |
2242 Series
TAPE, ELECTRICAL INSULATION, ETHYLENE PROPYLENE RUBBER, BLACK, 15FT L X 1.5" W
| Part | Usage | Color | Shelf Life | Temperature Range | Temperature Range | Adhesive | Tape Type | Width | Width | Width | Length | Length | Length | Thickness | Thickness | Thickness | Shelf Life Start | Backing, Carrier | Storage/Refrigeration Temperature | Storage/Refrigeration Temperature | Width | Width [y] | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Electrically Insulating | Black | 60 Months | 90 °C | 194 °F | Rubber, Self Fusing | Electrical | 1.5 " | 38.1 mm | 1 1/2 | 4.6 m | 15 ft | 5 yd | 0.03 in | 0.762 mm | 0.762 mm | Date of Manufacture | Rubber | 70 °F | 21 °C | ||||
Electrically Insulating | Black | 60 Months | 90 °C | 194 °F | Rubber, Self Fusing | Electrical | 0.75 in | 0.75 in | 4.6 m | 15 ft | 5 yd | 0.03 in | 0.762 mm | 0.762 mm | Date of Manufacture | Rubber | 70 °F | 21 °C | 19.05 mm | ||||
Black | 60 Months | 90 °C | 194 °F | Rubber | Electrical | 4.6 m | 15 ft | 5 yd | 0.03 in | 0.762 mm | 0.762 mm | Date of Manufacture | Ethylene Propylene Rubber | 69.8 °F | 21 °C | 2 " | 50.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
2242 Series
The 2242 series Scotch™ Liner-less Electrical Rubber Tape with highly conformable EPR (ethylene propylene rubber) based electrical insulation. It is an economical general purpose rubber tape designed for use in splicing and terminating wires and cables rated up to 90°C. The tape will meet industry specifications for flame retardance and has the necessary physical and electrical properties to provide immediate moisture seals and void-free build-up.
