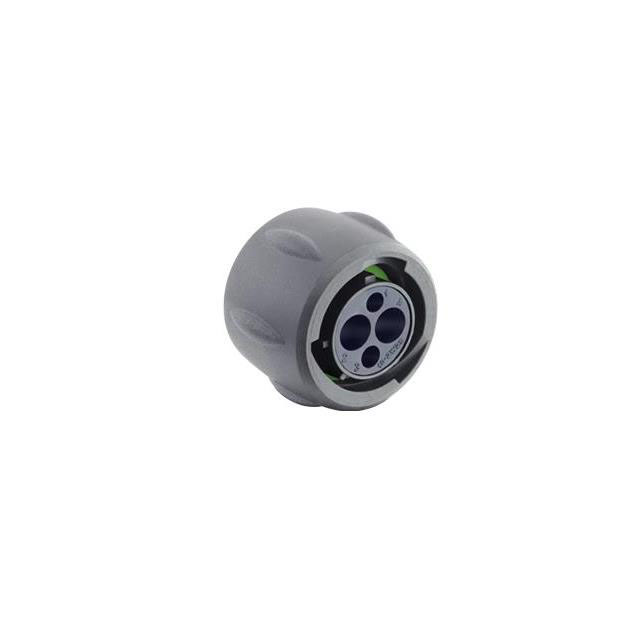

UTSX6102W2S
ActiveAmphenol Aerospace Operations
PLUG, WITHOUT BACKSHELL, FOR 4 F
UTSX6102W2S
ActiveAmphenol Aerospace Operations
PLUG, WITHOUT BACKSHELL, FOR 4 F
Description
General part information
UTSX6102W2S
4 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, UV Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | UTSX6102W2S |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 12, 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant, Coupling Nut |
| Housing Color | Black |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert | 10-2W2 |
| Shielding | Unshielded |
| Type | For Female Sockets |
