The core configuration is symmetric, where each core includes:32 KByte L1 Instruction Cache32 KByte L1 Data CachePrivate Timer and WatchdogCortex-A9 NEON MPE (Media Processing Engine) Co-processor The ARM Cortex-A9 MPCore complex includes:

Technical Specifications

Parameters and characteristics for this part

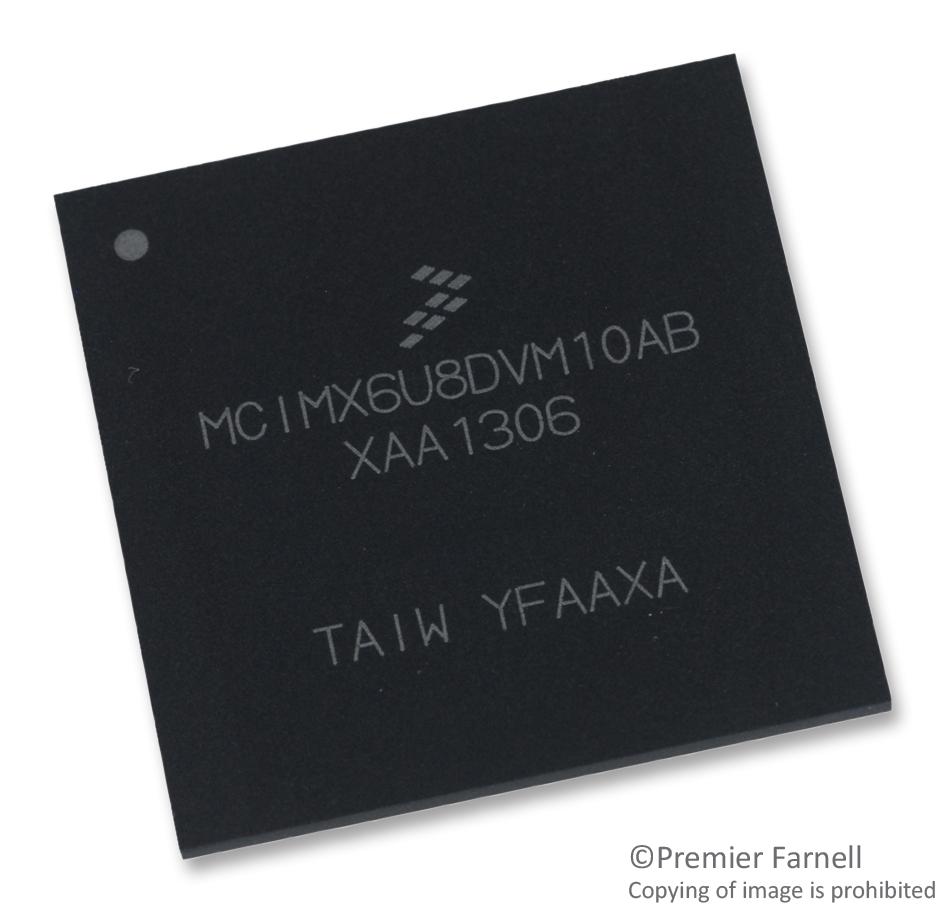

Specification	MCIMX6U8DVM10AB

Additional Interfaces	CAN, MMC/SD/SDIO, I2S, UART, SAI, I2C, SSI, SPI
Bus Width	32 Bit
Co-Processors/DSP	Multimedia, NEON™ SIMD
Core Processor	ARM® Cortex®-A9
Display & Interface Controllers	Keypad, LCD
Ethernet Ports	1
Ethernet Speed Options	100Mbps, 10Mbps, 1000Mbps
Graphics Acceleration	Yes
Mounting Type	Surface Mount
Number of Cores	2 Core
Operating Temperature (Max)	95 °C
Operating Temperature (Min)	0 °C
Package / Case	624-LFBGA
Package Length	21 mm
Package Name	624-MAPBGA
Package Width	21 mm
RAM Controllers	LVDDR3, DDR3, LPDDR2
Security Features	Tamper Detection, Secure Memory, Cryptography, ARM TZ, RTIC, Boot Security, Secure Fusebox, Secure RTC, Secure JTAG
Speed	1 GHz
USB	USB 2.0 + PHY
USB 2.0 PHY Count	4 count
Voltage - I/O (Option 1)	1.8 V
Voltage - I/O (Option 2)	2.5 V
Voltage - I/O (Option 3)	2.8 V
Voltage - I/O (Option 4)	3.3 V
