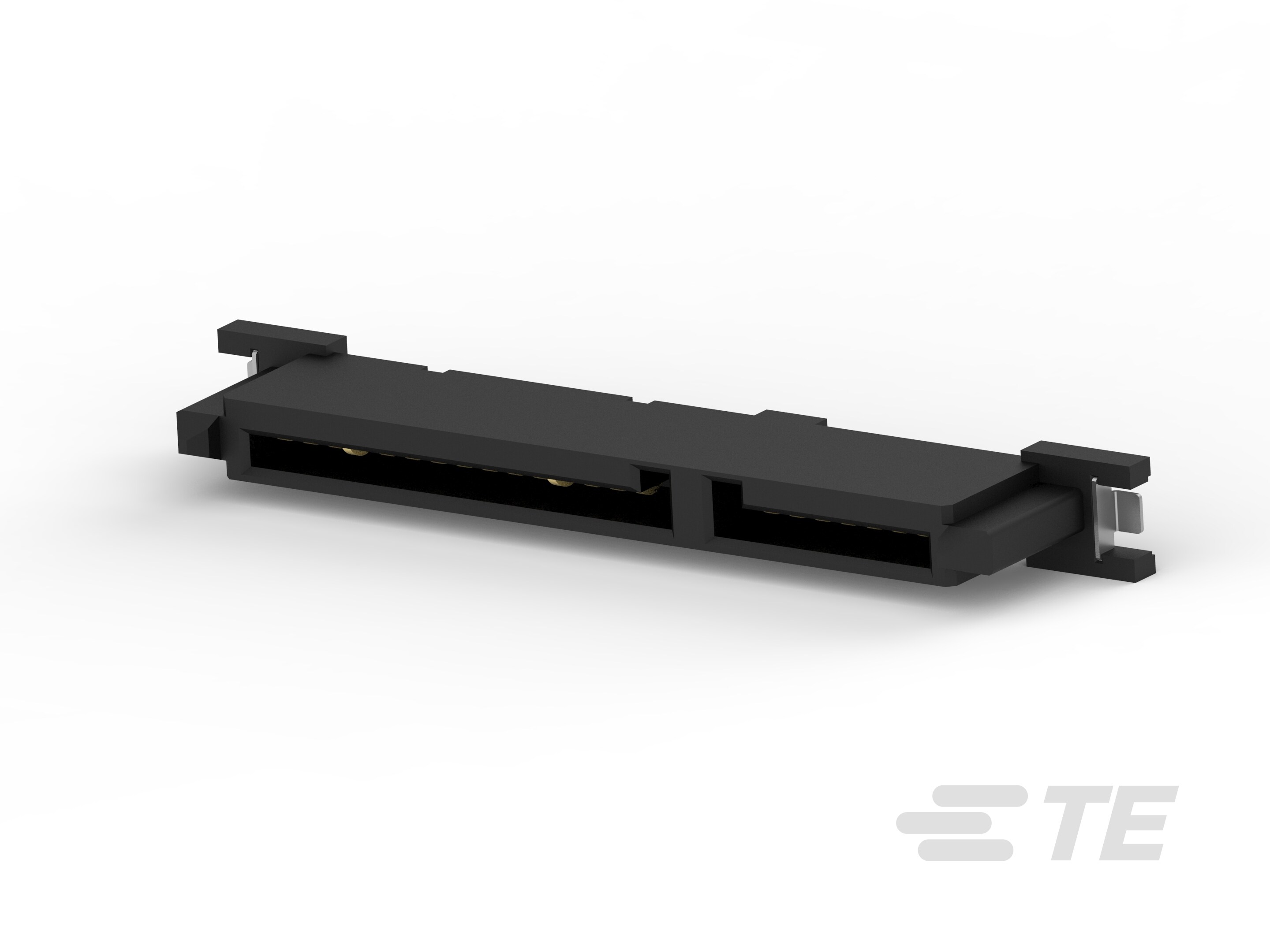

1735284-2
ActiveTE Connectivity AMP Connectors
I/O CONN, SATA, 22POS, RCPT, 8POS, PCB ROHS COMPLIANT: YES
1735284-2
ActiveTE Connectivity AMP Connectors
I/O CONN, SATA, 22POS, RCPT, 8POS, PCB ROHS COMPLIANT: YES
Description
General part information
1735284-2
SATA, Receptacle, Cable-to-Board, 22 Position, 7P + 15P, Standard Profile, Vertical, Surface Mount, 1 Row, 2 Port, Top, 1.27 mm [.05 in] Centerline
Technical Specifications
Parameters and characteristics for this part
| Specification | 1735284-2 |
|---|---|
| Connector Style | Receptacle |
| Connector Type | SATA |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Features | Board Lock |
| Mounting Type | Surface Mount |
| Number of Positions | 22 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
