40.703
ActiveAltech Corporation
TERM STRIP PNL MNT ATSF16/3 3 P
40.703
ActiveAltech Corporation
TERM STRIP PNL MNT ATSF16/3 3 P
Description
General part information
40.703

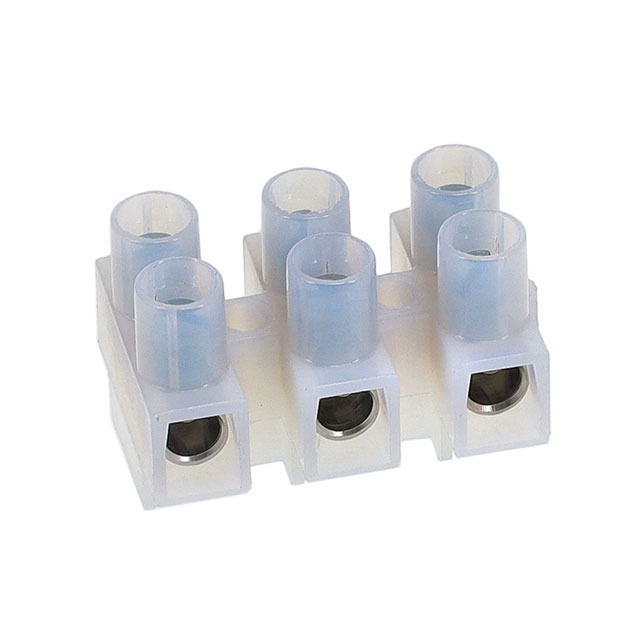

3 Circuit 0.591" (15.00mm) Eurostyle Terminal Strip Connector Screws
Technical Specifications
Parameters and characteristics for this part
| Specification | 40.703 |
|---|---|
| Barrier Type | Enclosed |
| Bottom Termination | Closed |
| Color | White |
| Current Rating | 63 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Chassis, Panel |
| Number of Circuits | 3 |
| Number of Rows | 2 |
| Number of Wire Entries | 6 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.591 in |
| Terminal Block Type | Eurostyle Terminal Strip |
| Terminal Screw Finish | Zinc |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 600 V |
| Wire Gauge (AWG) (Max) | 14 AWG |
| Wire Gauge (AWG) (Min) | 6 AWG |
