CCT272440-80-10-00
ActiveTDK Corporation

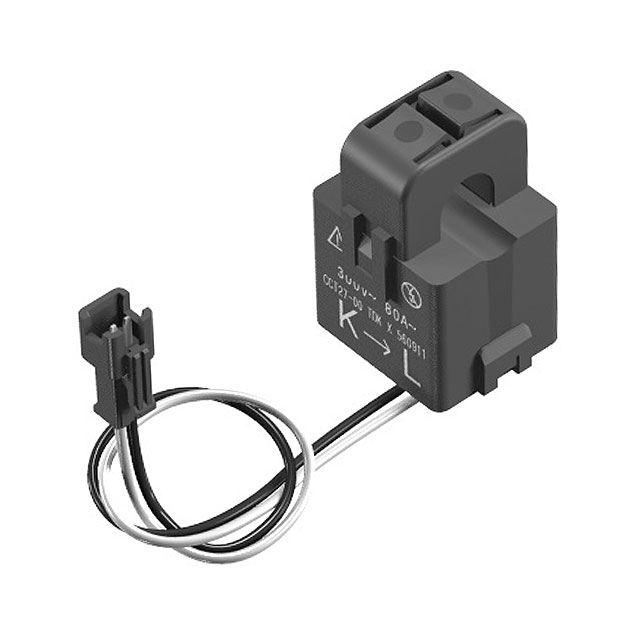

CURR SENSE XFMR 80A CHAS MNT
CCT272440-80-10-00
ActiveTDK Corporation
CURR SENSE XFMR 80A CHAS MNT
Description
General part information
CCT272440-80-10-00
80 A Current Sense Transformer 50/60Hz 352Ohm Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CCT272440-80-10-00 |
|---|---|
| Current Rating | 80 A |
| Current Ratio | 3000 ratio |
| DC Resistance (DCR) | 352 Ohm |
| Frequency Range | 60Hz, 50Hz |
| Frequency Range (Max) | 60 Hz |
| Frequency Range (Min) | 50 Hz |
| Height - Seated (Max) | 1.634 in |
| Mounting Type | Chassis Mount |
| Size / Dimension Length | 1.201 in |
| Size / Dimension Width | 1.083 in |
| Termination Style | Wire Leads with Connector |
| Type | Non-Invasive (Split Core) |
| Weight | 0.08 lb |
