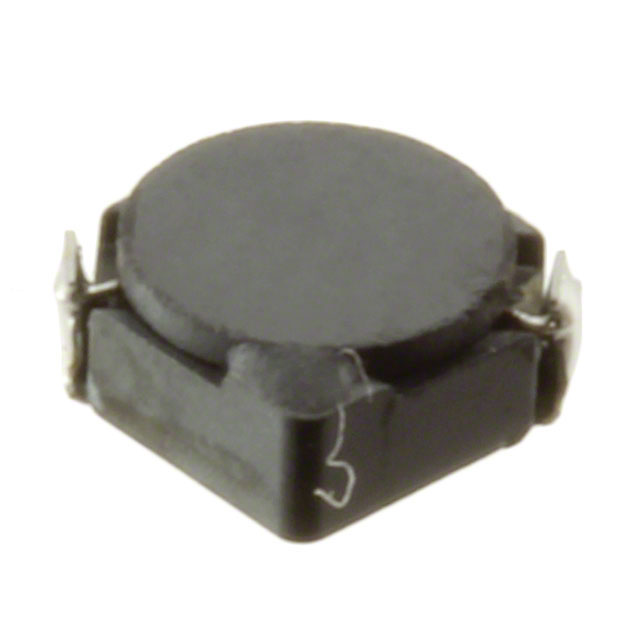

CDRH3D16NP-220NC
ActiveSumida America Components Inc.
FIXED IND 22UH 400MA 430MOHM SMD
CDRH3D16NP-220NC
ActiveSumida America Components Inc.
FIXED IND 22UH 400MA 430MOHM SMD
Description
General part information
CDRH3D16NP-220NC
22 µH Shielded Inductor 400 mA 430mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH3D16NP-220NC |
|---|---|
| Current Rating | 400 mA |
| DC Resistance (DCR) (Max) | 430 mOhm |
| Height - Seated (Max) | 0.071 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.15 in |
| Size / Dimension Width | 0.15 in |
| Tolerance | 30 % |
