Specification	2173168-1

Color	Black
Connector Style	Power
Connector Type	Housing for Female Sockets
Connector Usage	Receptacle
Features	Backshell
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Pitch	0.305 in

ELCON Mini Series

Part	Stacking Direction	Color	Number of Rows	Mounting Type	Number of Positions	Contact Termination	Contact Type	Pitch	Connector Type	Material - Insulation	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Note	Features	Row Spacing	Material Flammability Rating	Number of Columns	Contact Finish Thickness	Termination	Contact Finish	Number of Positions Loaded	Power Contacts (Typical)	Type	Number of Lines	Cable Length - Unexposed	Contact Finish Thickness (string set options)	Contact Finish Thickness
TE Connectivity AMP Connectors 1982299-4	Side to Side	Black	1	Free Hanging (In-Line)	2	Crimp	Female Blade Socket	0.307 in	Plug
TE Connectivity AMP Connectors 2173200-1	Side to Side Top to Bottom	Black	2	Free Hanging (In-Line)	4	Crimp	Female Blade Socket	0.307 in	Receptacle	Glass Filled PBT Polybutylene Terephthalate	Latch Lock	125 °C	-40 °C	60 V	Contacts Not Included	Panel Lock	0.246 in
TE Connectivity AMP Connectors 2204581-1		Black	1	Right Angle Through Hole	3				Header Male Blades			105 °C	-40 °C					UL94 V-0	1	3 µin	Press-Fit	Silver	All	3
TE Connectivity AMP Connectors 2173211-2		Black	2	Through Hole	4				Header Male Blades							Board Lock				118.1 µin	Press-Fit Solder	Silver	All	4

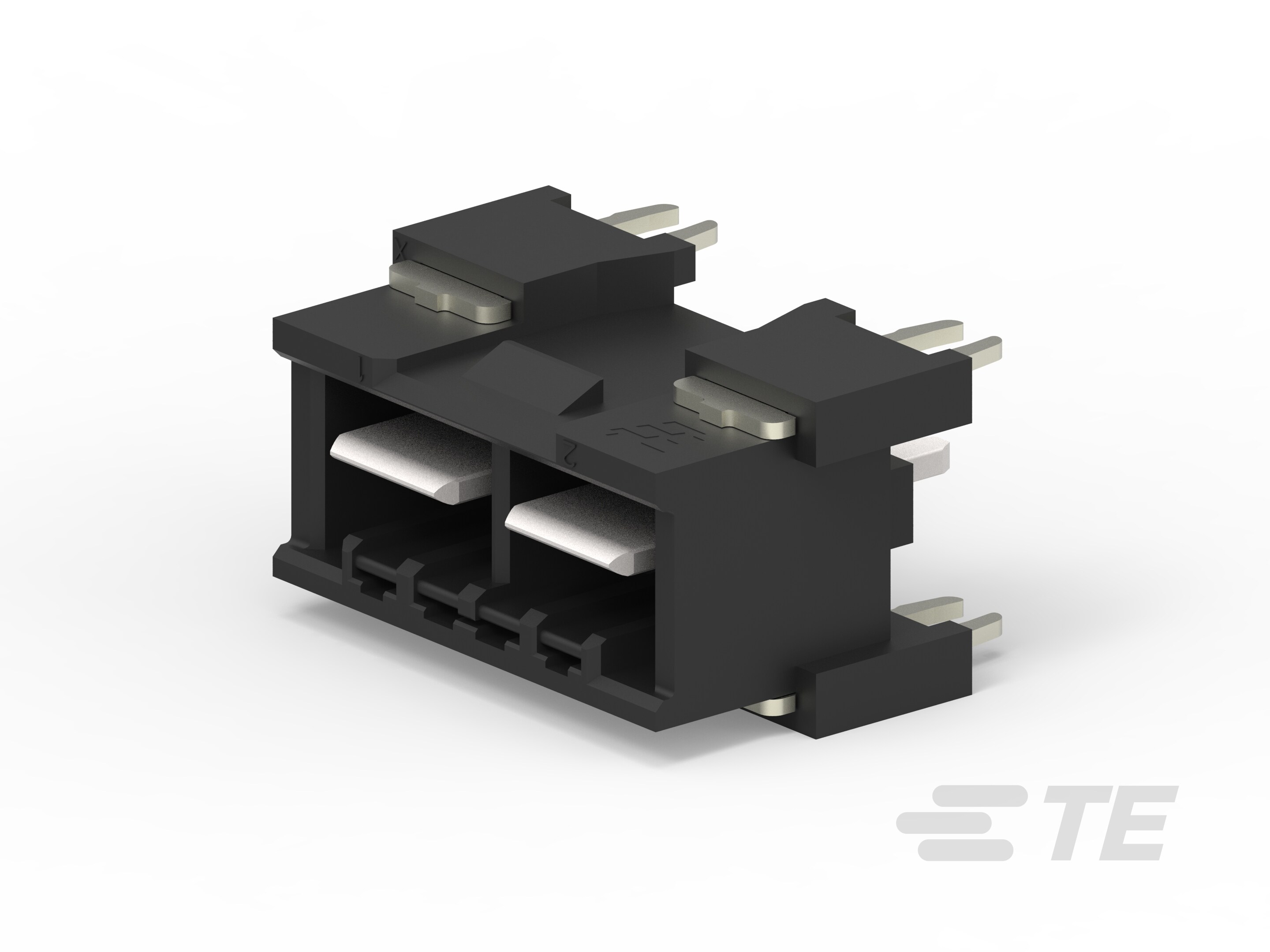

TE Connectivity AMP Connectors 2042274-2		Black	1	Through Hole	2				Header Male Blades			125 °C	-40 °C	500 V		Board Lock		UL94 V-0		118.1 µin	Solder	Silver	All	2

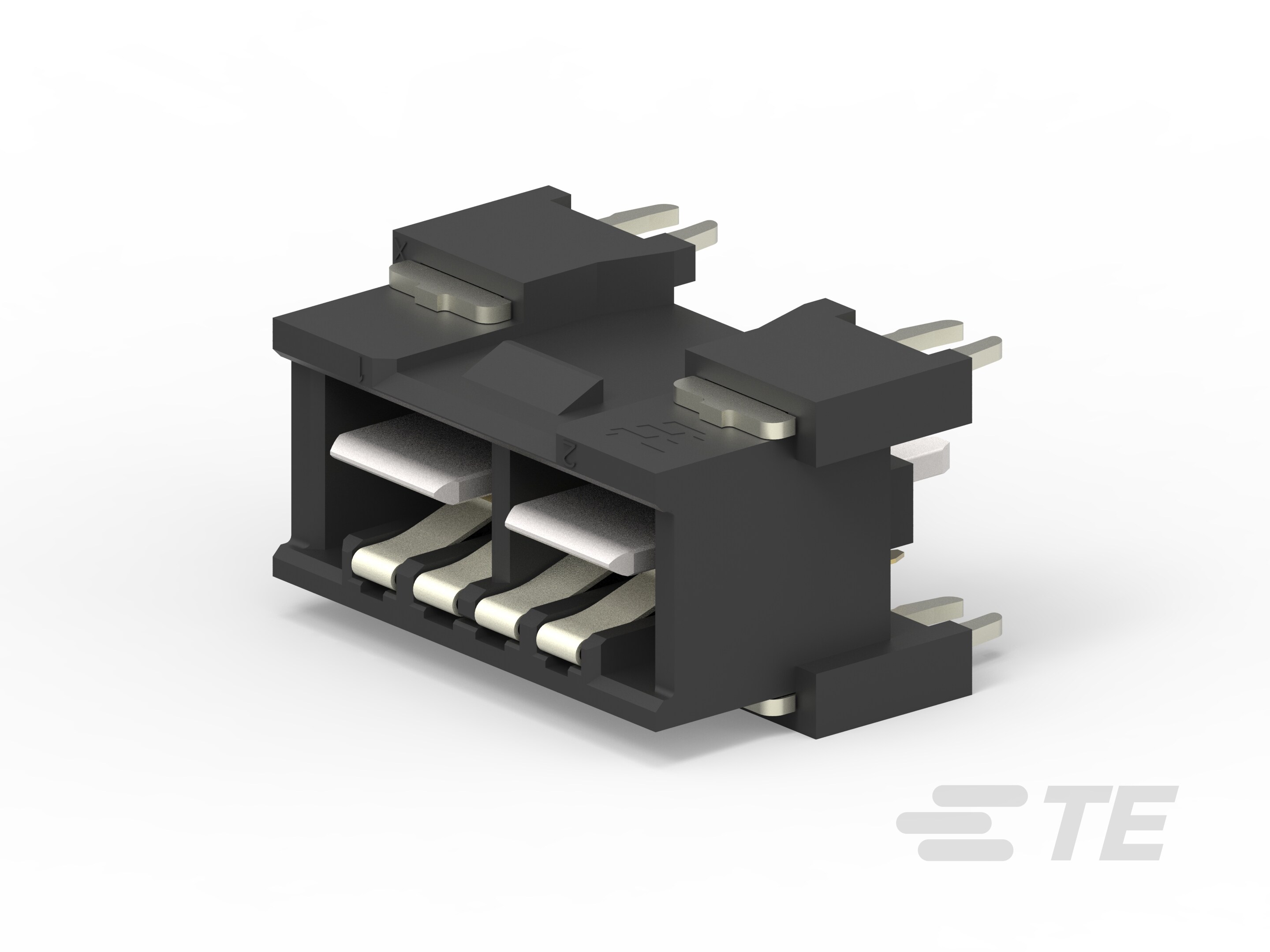

TE Connectivity AMP Connectors 2042274-1		Black	1	Through Hole	2				Header Male Blades			125 °C	-40 °C	500 V		Board Lock		UL94 V-0		118.1 µin	Solder	Silver	All	2
TE Connectivity AMP Connectors 2304890-1																									Power Contacts to Power Contacts	4	0.82 ft

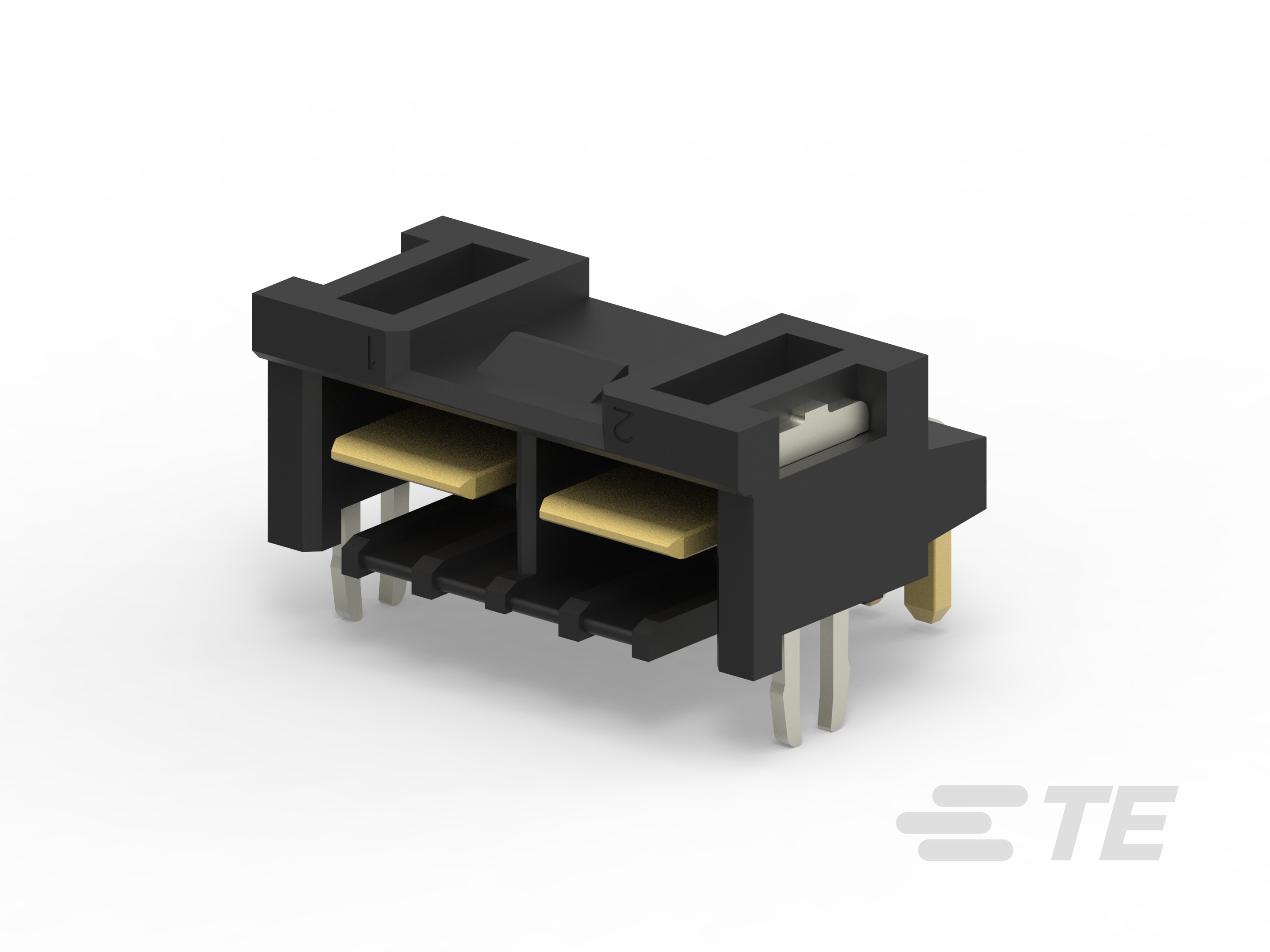

TE Connectivity AMP Connectors 1982295-6		Black	1	Through Hole	2				Header Male Blades							Board Lock				0	Solder	Silver	All	2				Flash	Flash
TE Connectivity AMP Connectors 2204585-3		Black	1	Through Hole	3				Header Male Blades			105 °C	-40 °C					UL94 V-0		3 µin	Press-Fit	Silver	All	3
TE Connectivity AMP Connectors 2204585-1		Black	1	Through Hole	3				Header Male Blades											3 µin	Press-Fit	Silver	All	3
