Description
General part information
ABX00053

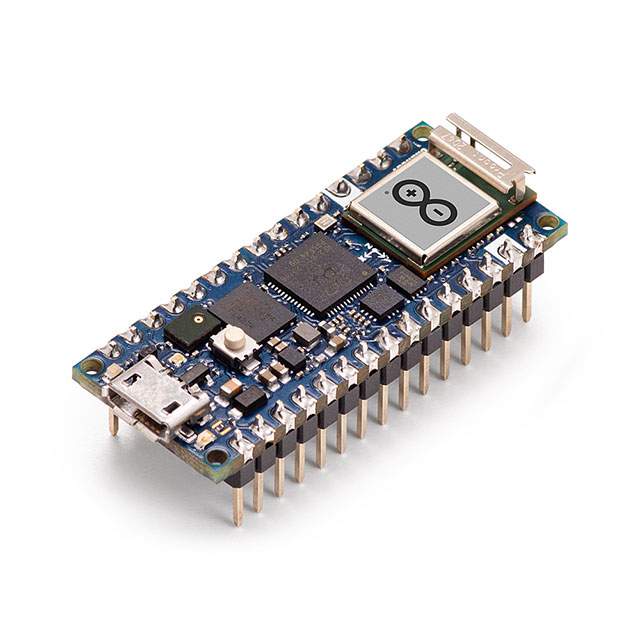

The Arduino Nano RP2040 Connect with Headers (ABX00053) is a development board featuring the ARM® Cortex®-M0+ MCU, specifically the Raspberry Pi RP2040. This board includes the NINA-W102 module for seamless WiFi and Bluetooth connectivity, making it ideal for IoT applications. It offers a comprehensive set of GPIOs, including 22 digital, 8 analog, and 2 PWM pins, and supports the Arduino Nano interconnect system. With a processor clock speed of 133 MHz and a logic level voltage of 3.3V, this board is breadboard-friendly and compatible with the Arduino IDE for easy programming.
Technical Specifications
Parameters and characteristics for this part
| Specification | ABX00053 |
|---|---|
| Board Type | Evaluation Platform |
| Contents | Board |
| Core Processor | ARM® Cortex®-M0+ |
| Interconnect System | Arduino Nano |
| Mounting Type | Fixed |
| Platform | Arduino Nano RP2040 Connect with Headers |
| Type | MCU 32-Bit |
| Utilized IC / Part | NINA-W102, RP2040 |
