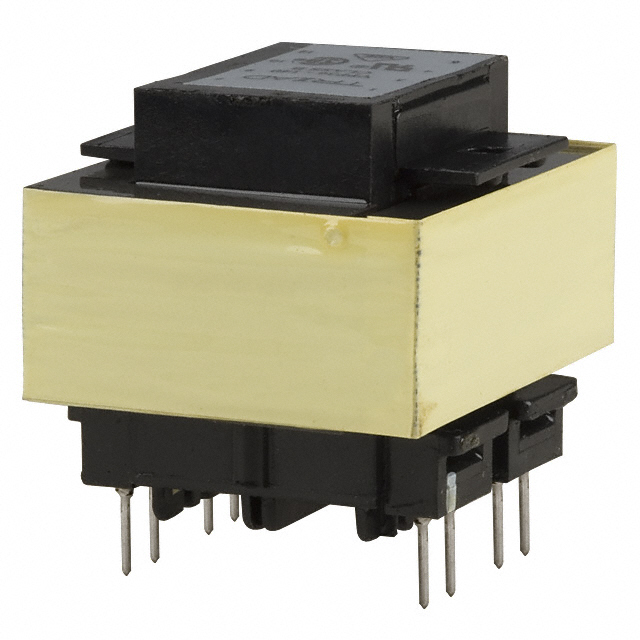

VPP20-250

VPP20-250

Active
Triad Magnetics

PCB TRANSFORMER, DUAL BOBBIN, DUAL BOBBIN, 2 X 115V, 2 X 10V, 5 VA, 50HZ / 60HZ

Find alt
VPP20-250

VPP20-250

Active
Triad Magnetics

PCB TRANSFORMER, DUAL BOBBIN, DUAL BOBBIN, 2 X 115V, 2 X 10V, 5 VA, 50HZ / 60HZ

Find alt

Description

General part information

VPP20-250

PCB TRANSFORMER, DUAL BOBBIN, DUAL BOBBIN, 2 X 115V, 2 X 10V, 5 VA, 50HZ / 60HZ

Technical Specifications

Parameters and characteristics for this part

SpecificationVPP20-250
Center TapNo
Current - Output (Max) Parallel500 mA
Current - Output (Max) Series250 mA
Height - Seated (Max)34.93 mm
Mounting TypeThrough Hole
Power - Max5 VA
Primary Winding(s)Dual
Secondary Winding(s)Dual
Size / Dimension Length41.28 mm
Size / Dimension Width33.32 mm
Termination StylePC Pin
TypeLaminated Core
Voltage - Isolation4000 Vpk
Voltage - Primary230V, 115V
Voltage - Secondary (Full Load) (Parallel)10 V
Voltage - Secondary (Full Load) (Series)20 V
Weight0.37 lb
