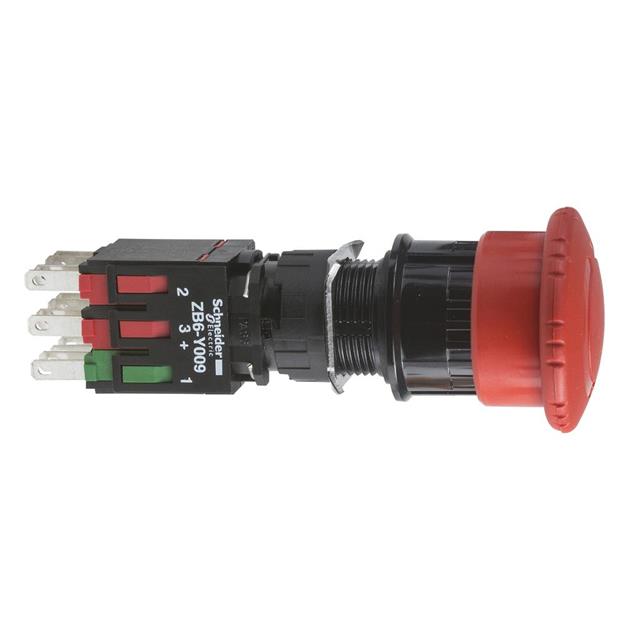

Specification	XB6AS8342B

Circuit	SPST-NC
Current Rating	220 mA, 3 A
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	16 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Reset Operation	Twist
Switch Function	On-Off
Termination Style	Quick Connect
Voltage Rating - AC	120 V
Voltage Rating - DC	125 V

XB6 Series

Part	Panel Cutout Dimension	Current	Voltage (Min)	Voltage (Max)	Ratings	Quick Connect Size (0.110")	Termination Style	Type	Lens Length	Lens Width	Ingress Protection	Lens Color	Panel Cutout Shape	Lens Style	Mounting Type	Voltage Rating - DC	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Switch Function	Voltage Rating - AC	Color - Actuator/Cap	Actuator Type	Circuit	Panel Cutout Diameter	Electrical Life (Cycles)	Illumination Voltage (Nominal)	Color	Illumination Type	Lens Diameter	Mechanical Life (Cycles)
SCHNEIDER ELECTRIC XB6DV5BB	0.63 "	15 mA	12 V	24 V	AC DC	0.11 in	Quick Connect	LED	24 mm	18 mm	13 4 IP65 NEMA 4X	Yellow	Round	Convex Top Rectangle
SCHNEIDER ELECTRIC XB6DA45B						0.11 in	Quick Connect	Standard					Circular		Front Panel Mount	125 V	IP65	Dust Tight Water Resistant	70 °C	-25 °C	3 A 220 mA	Off-On On-Off	120 V	Red	Button Flush Rectangular	DPST-NO/NC	16 mm
SCHNEIDER ELECTRIC XB6CF4B5B						0.11 in	Quick Connect	Illuminated Standard					Circular		Front Panel Mount	125 V	IP65	Dust Tight Water Resistant	70 °C	-25 °C	3 A 220 mA	Off-On On-Off	120 V	Red	Button Square	DPST-NO/NC	16 mm	1000000 Cycles	12 V	Red	LED
SCHNEIDER ELECTRIC XB6AV3BB	0.63 "	15 mA	12 V	24 V	AC DC	0.11 in	Quick Connect	LED			13 4 IP65 NEMA 4X	Green	Round	Convex Top Round																		18 mm
SCHNEIDER ELECTRIC XB6CV1BB	0.63 "	15 mA	12 V	24 V	AC DC	0.11 in	Quick Connect	LED	18 mm	18 mm	13 4 IP65 NEMA 4X	White	Round	Flat Top Square
SCHNEIDER ELECTRIC XB6EDW1B1P						0.11 in	Quick Connect	Illuminated Standard					Circular		Front Panel Mount	24 V	IP65	Dust Tight Water Resistant	55 °C	-10 °C	1 A 1.5 A	On-On	120 V	White	Button Flush Rectangular	SPDT	16 mm	100000 Cycles	24 V	White	LED		1000000 Cycles
SCHNEIDER ELECTRIC XB6DF3B5B						0.11 in	Quick Connect	Illuminated Standard					Circular		Front Panel Mount	125 V	IP65	Dust Tight Water Resistant	70 °C	-25 °C	3 A 220 mA	Off-On On-Off	120 V	Green	Button Flush Rectangular	DPST-NO/NC	16 mm	1000000 Cycles	12 V	Green	LED
SCHNEIDER ELECTRIC XB6ECF4B2P						0.11 in	Quick Connect	Illuminated Standard					Circular		Front Panel Mount		IP65	Dust Tight Water Resistant	55 °C	-10 °C		Off-On		Red	Button Square	DPST-NC	16 mm	50000	24 V	Red	LED		250000 Cycles
SCHNEIDER ELECTRIC XB6AV3GB	0.63 "	15 mA	48 V	120 V	AC	0.11 in	Quick Connect	LED			13 4 IP65 NEMA 4X	Green	Round	Convex Top Round																		18 mm
SCHNEIDER ELECTRIC XB6CA25B						0.11 in	Quick Connect	Standard					Circular		Front Panel Mount	125 V	IP65	Dust Tight Water Resistant	70 °C	-25 °C	3 A 220 mA	Off-On On-Off	120 V	Black	Button Square	DPST-NO/NC	16 mm	1000000 Cycles					2000000 Cycles
