40594
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 14-18AWG #8 CRIMP
40594
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 14-18AWG #8 CRIMP
Description
General part information
40594

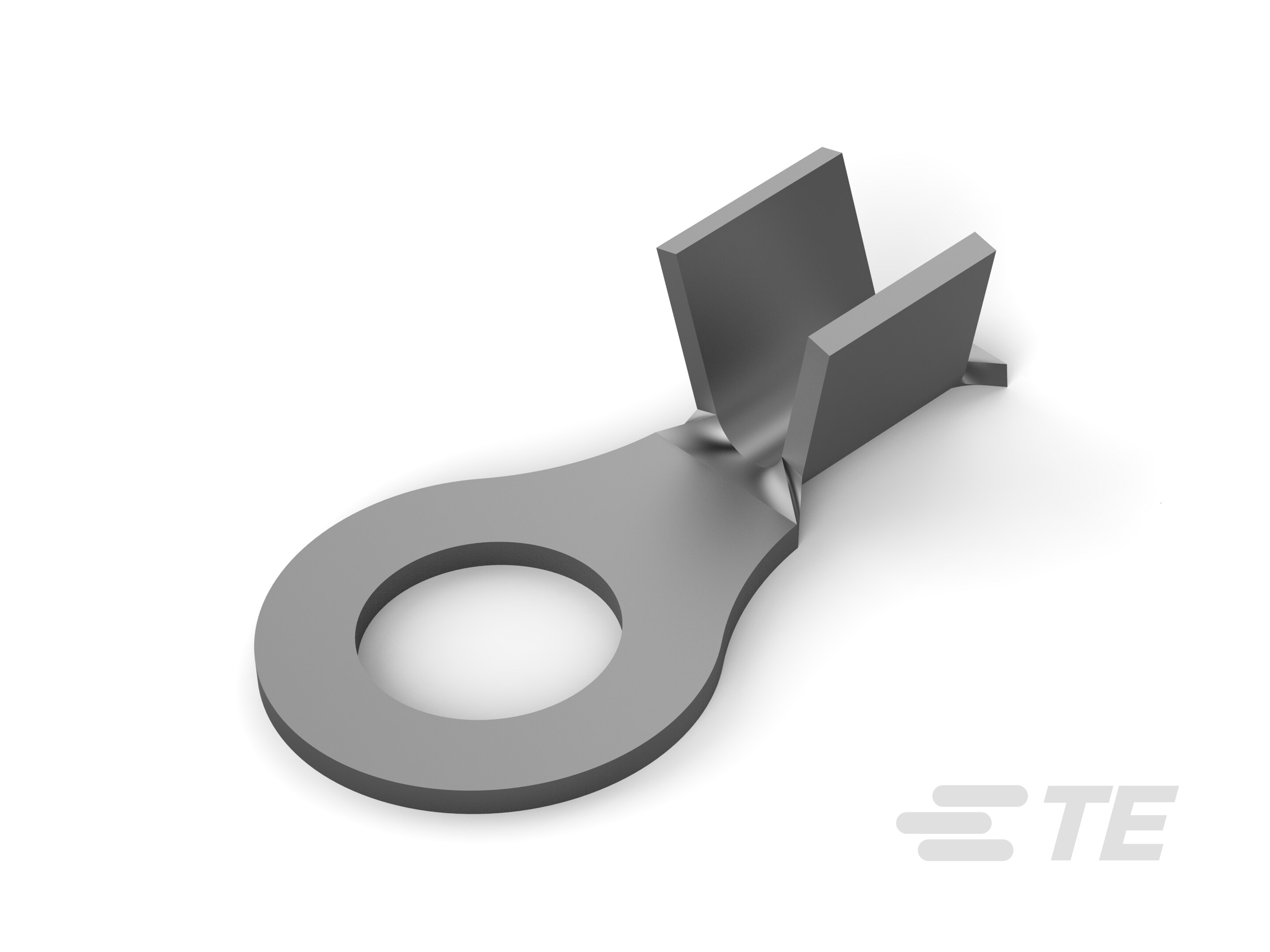

Closed Ring Tongue Terminal, 18 – 14 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 40594 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 0.535 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.02 in |
| Width - Outer Edges | 0.3 in |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
