1-1377174-8
ActiveTE Connectivity AMP Connectors
CONN WIRE PIN TERM 10-12AWG PIDG
1-1377174-8
ActiveTE Connectivity AMP Connectors
CONN WIRE PIN TERM 10-12AWG PIDG
Description
General part information
1-1377174-8

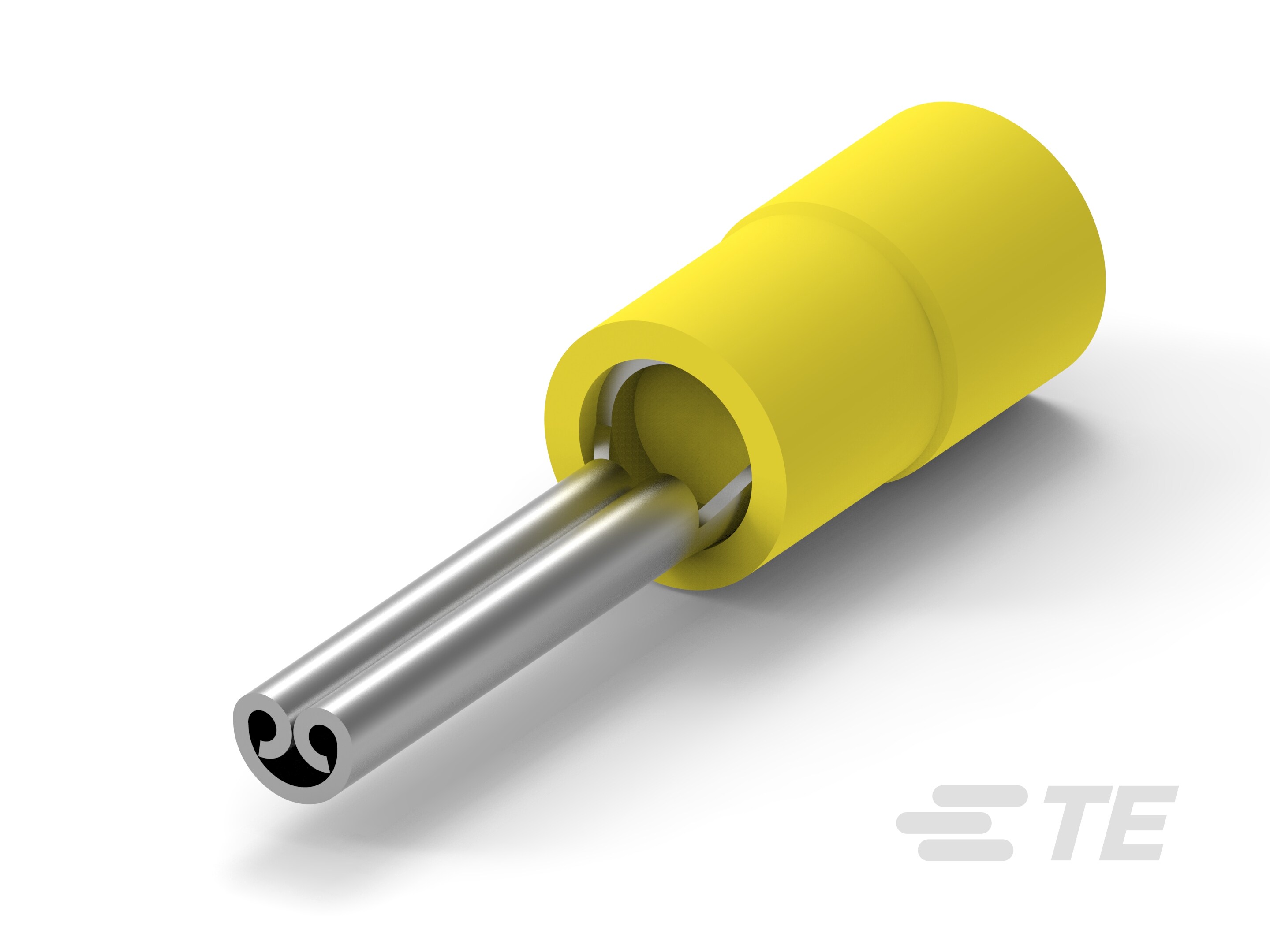

Wire Pin, 16 – 14 AWG, 1 – 2.5 mm² Wire, 2050 – 5180 CMA, Closed Barrel, Tin Plating, 14.6 mm [.575 in] Length, Box, Round, Discrete Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1377174-8 |
|---|---|
| Color | Yellow |
| Features | Serrated Termination |
| Insulation | Insulated |
| Insulation Diameter | 0.248 in |
| Length - Overall | 1.319 in |
| Length - Pin | 0.598 " |
| Pin Diameter | 0.11 in |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
| Wire Gauge (Cross-Sectional Area) (Max) | 4 mm² |
| Wire Gauge (Cross-Sectional Area) (Min) | 6 mm² |
