XS230BLNAM12
ActiveSCHNEIDER ELECTRIC

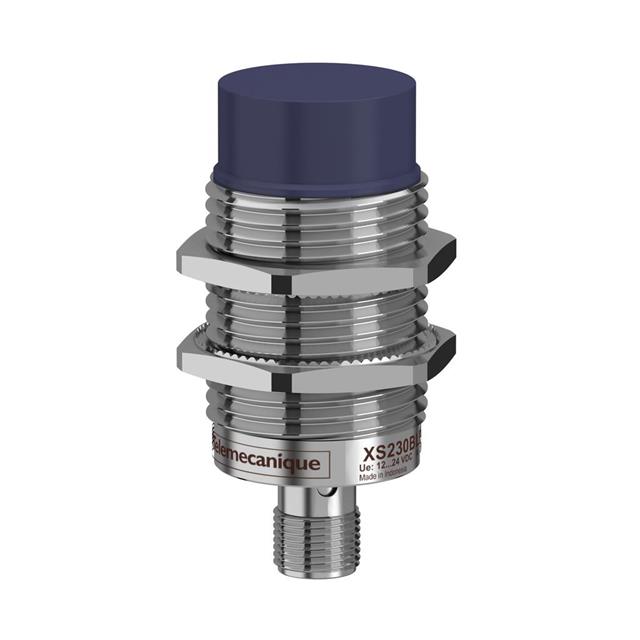

INDUCTIVE SENSOR XS2 M30, L68MM,
XS230BLNAM12
ActiveSCHNEIDER ELECTRIC
INDUCTIVE SENSOR XS2 M30, L68MM,
Description
General part information
XS230BLNAM12
Inductive Proximity Sensor 0.591" (15mm) IP67 Cylinder, Threaded - M30
Technical Specifications
Parameters and characteristics for this part
| Specification | XS230BLNAM12 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 3-Wire, NPN-NO |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 0.591 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
