154740-1
ActiveTE Connectivity AMP Connectors
CONTACT SKT CRIMP ST CABLE MOUNT 16-20AWG REEL
154740-1
ActiveTE Connectivity AMP Connectors
CONTACT SKT CRIMP ST CABLE MOUNT 16-20AWG REEL
Description
General part information
154740-1

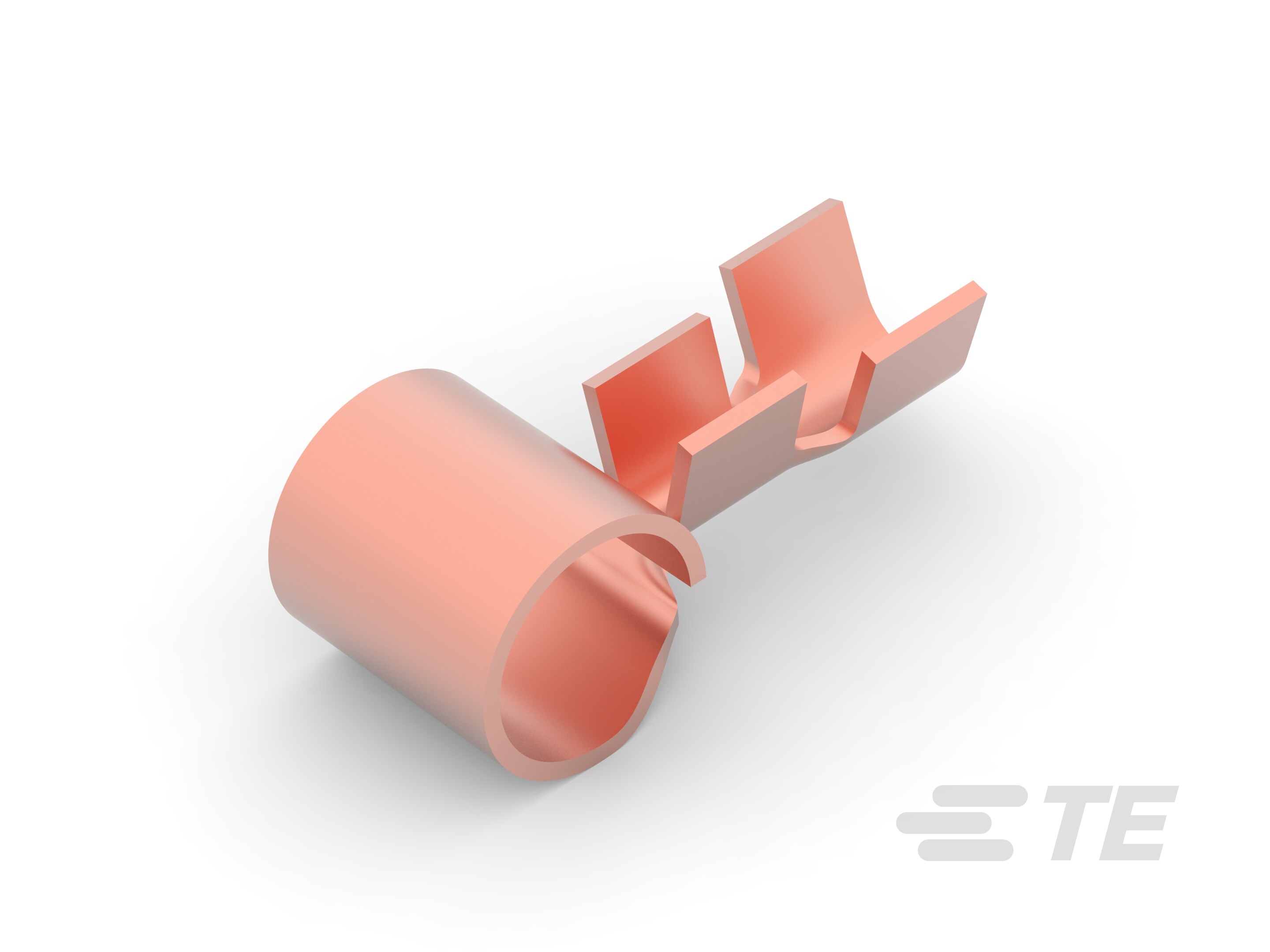

Receptacle, 4.44 mm [.175 in] Pin Diameter, 20 – 16 AWG, .5 – 1.3 mm² Wire, 1021 – 2582 CMA, Open Barrel, Unplated Plating, 9.91 mm [.39 in] Length
Technical Specifications
Parameters and characteristics for this part
| Specification | 154740-1 |
|---|---|
| Contact Material | Phosphor Bronze |
| Diameter - Barrel | 0.177 in |
| Insulation | Non-Insulated |
| Length - Barrel | 0.245 in |
| Terminal Type | Female, Right Angle, Receptacle (Socket) |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
