2227669-8
ActiveTE Connectivity AMP Connectors

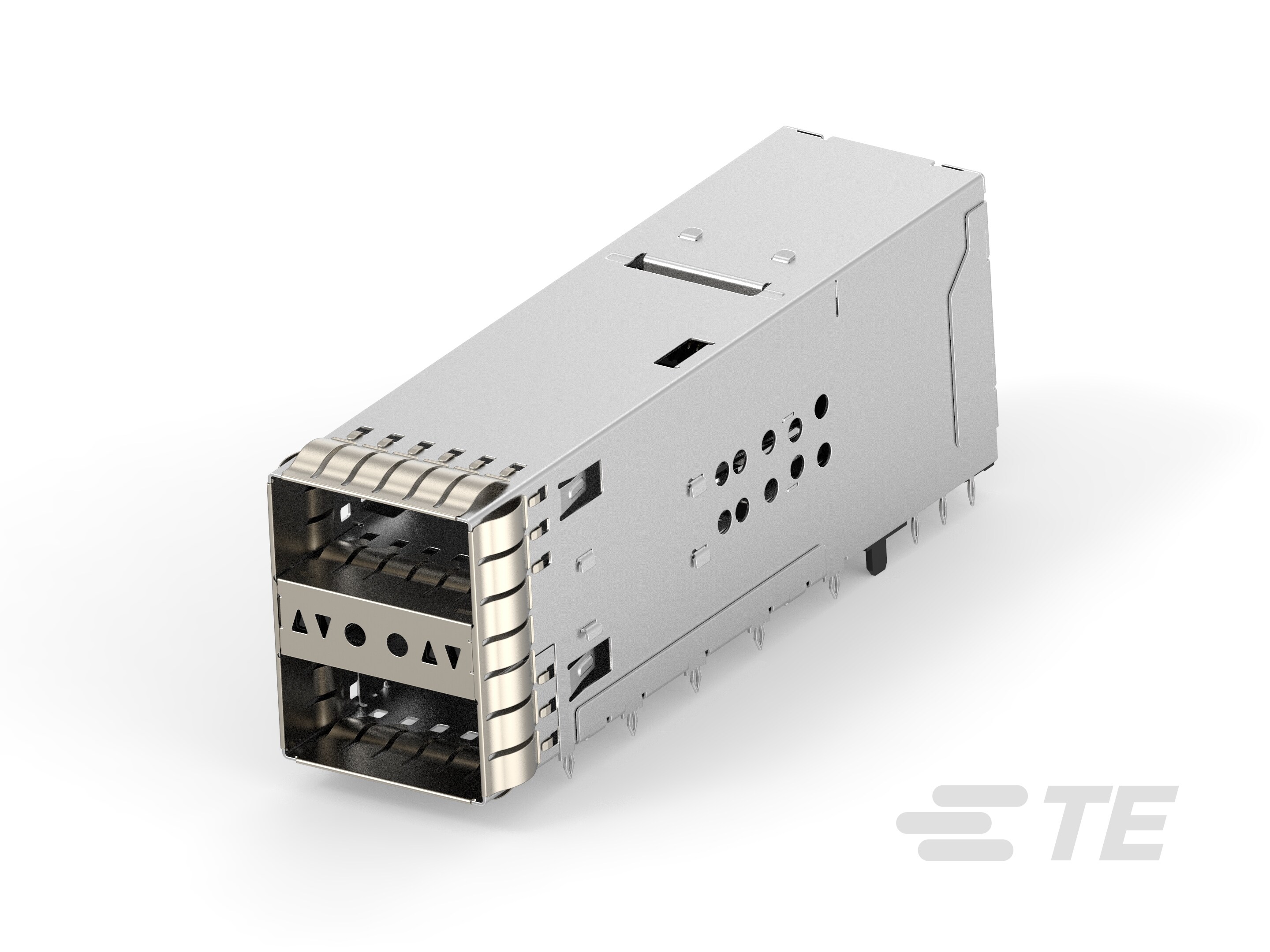

I/O CONNECTORS ZQSFP+ STACKED REC ASSEMBLY 2X1,4LP L UP
2227669-8
ActiveTE Connectivity AMP Connectors
I/O CONNECTORS ZQSFP+ STACKED REC ASSEMBLY 2X1,4LP L UP
Description
General part information
2227669-8
zQSFP+, Cage Assembly with Integrated Connector, .8mm [.031in] Centerline, Signal, Operating Temperature Range -40 – 85 °C [-40 – 185 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 2227669-8 |
|---|---|
| Connector Pin Configuration (Columns) | 1 pins |
| Connector Pin Configuration (Rows) | 2 pins |
| Connector Style | Receptacle with Cage, Ganged |
| Connector Type | ZQSFP+ |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Light Pipe, EMI Shielded |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions (Columns) | 38 |
| Number of Positions (Rows) | 2 |
| Number of Positions (Total) | 76 |
| Termination | Press-Fit |
