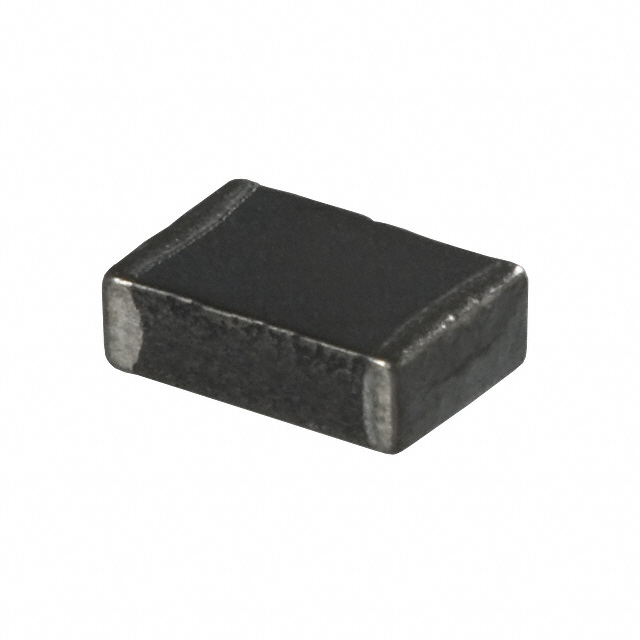

MI1812K121R-00
ObsoleteLaird Technologies EMI
FERRITE BEAD 120 OHM 1812 1LN
MI1812K121R-00
ObsoleteLaird Technologies EMI
FERRITE BEAD 120 OHM 1812 1LN
Description
General part information
MI1812K121R-00
120 Ohms @ 100 MHz 1 Ferrite Bead 1812 (4532 Metric) 1.5A 55mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | MI1812K121R-00 |
|---|---|
| Current Rating (Max) | 1.5 A |
| DC Resistance (DCR) (Max) | 55 mOhm |
| Height (Max) | 0.065 in |
| Impedance | 120 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.126 in |
