Specification	MIPEN1XX010BSCHX

Accuracy	0.15 %
Applications	Medical Ventilation
Features	Temperature Compensated
Maximum Pressure	348.09 PSI
Operating Pressure	145.04 PSI
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Type	Analog Voltage
Output Voltage (Max)	4.5 V
Output Voltage (Min)	0.5 V
Package / Case	Threaded, Cylinder
Port Diameter	0.25 "
Port Feature	NPT
Port Gender	Male
Port Style	Threaded
Pressure Type	Sealed Gauge
Termination Style	Cable
Voltage - Supply (Maximum)	5.25 V
Voltage - Supply (Minimum)	4.75 V

MIP Series

...

Part	Port Diameter	Port Gender	Port Feature	Output Type	Pressure Type	Package / Case	Features	Termination Style	Accuracy	Applications	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Port Style	Output Voltage (Min)	Output Voltage (Max)	Operating Pressure	Operating Temperature (Max)	Operating Temperature (Min)	Maximum Pressure	Output Voltage
Honeywell Sensing and Productivity Solutions MIPAN1XX025BSAAX	0.25 "	Male	NPT	Analog Voltage	Sealed Gauge	Cylinder Threaded	Temperature Compensated	Connector	0.15 %	Medical Ventilation	5.25 V	4.75 V	Threaded	0.5 V	4.5 V	362.59 PSI	125 °C	-40 °C
Honeywell Sensing and Productivity Solutions MIPAG1XX006BAAAX	0.25 "	Male	G	Analog Voltage	Absolute	Cylinder Threaded	Temperature Compensated		0.15 %	Industrial Automation Medical Ventilation	5.25 V	4.75 V	Threaded			87.02 PSI	125 °C	-40 °C	348.09 PSI	5 V

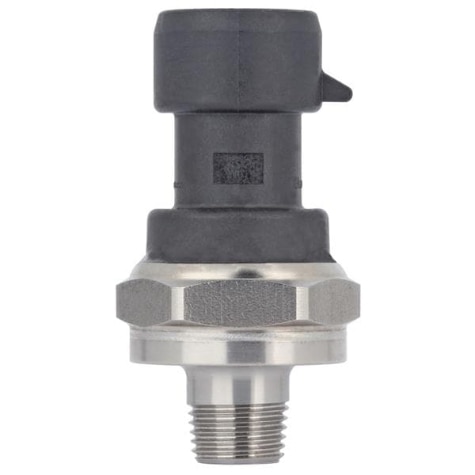

Honeywell Sensing and Productivity Solutions MIPAN2XX100PSAAX	0.125 "	Male	NPT	Analog Voltage	Sealed Gauge	Cylinder Threaded	Temperature Compensated	Connector	0.15 %		5.25 V	4.75 V	Threaded	0.5 V	4.5 V	100 PSI	125 °C	-40 °C	348.09 PSI
Honeywell Sensing and Productivity Solutions MIPAN2XX015PAAAX	0.125 "	Male	NPT	Analog Voltage	Absolute	Cylinder Threaded	Temperature Compensated	Connector	0.15 %	Medical Ventilation	5.25 V	4.75 V	Threaded	0.5 V	4.5 V	15 PSI	125 °C	-40 °C	87.02 PSI
Honeywell Sensing and Productivity Solutions MIPAF1XX150PAAAX	0.4375 in	Female	Schrader UNF	Analog Voltage	Absolute	Cylinder Threaded	Temperature Compensated	Connector	0.15 %	Medical Ventilation	5.25 V	4.75 V	Threaded	0.5 V	4.5 V	150 PSI	125 °C	-40 °C	348.09 PSI
Honeywell Sensing and Productivity Solutions MIPAF1XX667PAAAX	0.4375 in	Female	Schrader UNF	Analog Voltage	Absolute	Cylinder Threaded	Temperature Compensated	Connector	0.15 %	Medical Ventilation	5.25 V	4.75 V	Threaded	0.5 V	4.5 V	667 PSI	125 °C	-40 °C
Honeywell Sensing and Productivity Solutions MIPAF1XX046BSAAX	0.4375 in	Female	Schrader UNF	Analog Voltage	Sealed Gauge	Cylinder Threaded	Temperature Compensated	Connector	0.15 %	Medical Ventilation	5.25 V	4.75 V	Threaded	0.5 V	4.5 V	667.17 PSI	125 °C	-40 °C
Honeywell Sensing and Productivity Solutions MIPAG1XX050BSAAX	0.25 "	Male	BSPP	Analog Voltage	Sealed Gauge	Cylinder Threaded	Temperature Compensated	Connector	0.15 %		5.25 V	4.75 V	Threaded	0.5 V	4.5 V	725.19 PSI	125 °C	-40 °C	1740.45 PSI
Honeywell Sensing and Productivity Solutions MIPAN1XX050BSAAX	0.25 "	Male	NPT	Analog Voltage	Sealed Gauge	Cylinder Threaded	Temperature Compensated	Connector	0.15 %	Medical Ventilation	5.25 V	4.75 V	Threaded	0.5 V	4.5 V	725.19 PSI	125 °C	-40 °C
Honeywell Sensing and Productivity Solutions MIPAN1XX035BSAAX	0.25 "	Male	NPT	Analog Voltage	Sealed Gauge	Cylinder Threaded	Temperature Compensated	Connector	0.15 %	Medical Ventilation	5.25 V	4.75 V	Threaded	0.5 V	4.5 V	507.63 PSI	125 °C	-40 °C
