WAU120-1000T-S
ActiveTriad Magnetics
AC/AC WALL MNT ADAPTER 12VAC 1A
WAU120-1000T-S
ActiveTriad Magnetics
AC/AC WALL MNT ADAPTER 12VAC 1A
Description
General part information
WAU120-1000T-S

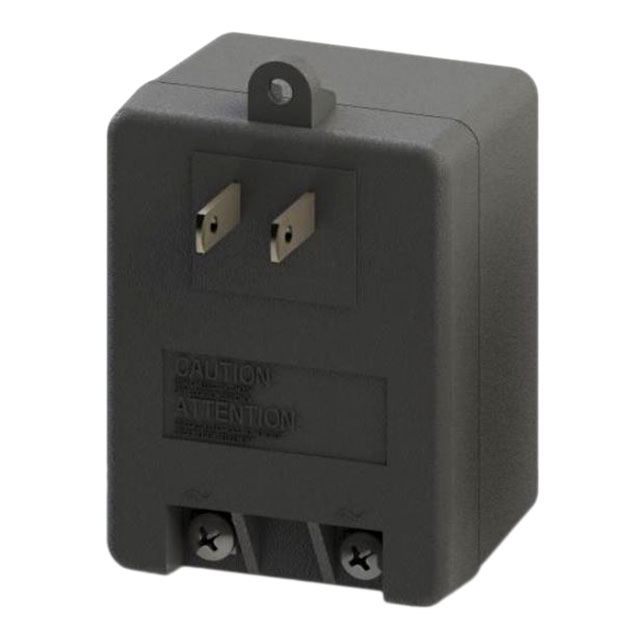

12VAC 1A AC/AC External Wall Mount Adapter Fixed Blade Input
Technical Specifications
Parameters and characteristics for this part
| Specification | WAU120-1000T-S |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus |
| Current - Output (Max) | 1 A |
| Efficiency | Level VI |
| Form | Wall Mount |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption (Max) | 210 mW |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Output Connector | Screw Terminal |
| Power (Watts) | 12 W |
| Region Utilized | North America |
| Size / Dimension Height | 3.15 in |
| Size / Dimension Length | 1.89 in |
| Size / Dimension Width | 2.36 in |
| Voltage - Input | 120 VAC |
| Voltage - Output | 12 V |
